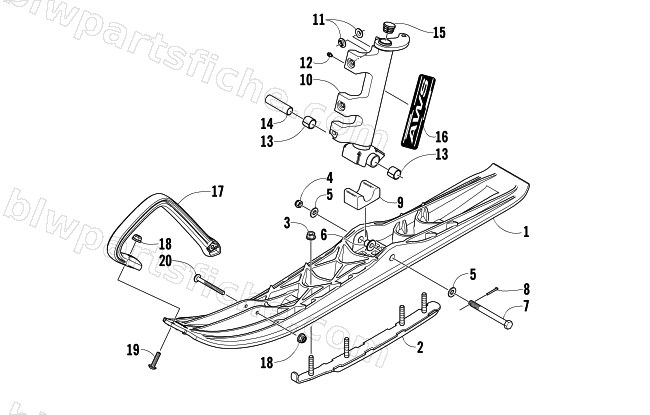

2006 Arctic Cat T660 TURBO TOURING — SKI AND SPINDLE ASSEMBLY
2006 T660 TURBO TOURING
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1703-867 | SKI, PLASTIC WIDE-MACHINED | 1 | $231.95 | |
| 1 | 2603-599 | R/B 3703-940 | 1 | $228.95 | |
| 2 | 1703-848 | SKAG, DUAL, RH- 1 X 4" CARBIDE-PTD BLK | 1 | $108.95 | |
| 2 | 1703-849 | SKAG, DUAL, LH- 1 X 4" CARBIDE-PTD BLK | 1 | $108.95 | |
| 3 | 0603-616 | SPACER,SADDLE | 1 | $20.63 | |
| 4 | 8047-486 | NUT,HEX FLG-NY LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 5 | 2603-548 | AXLE,SPINDLE | 1 | $19.25 | |
| 6 | 0123-296 | NUT,FLEX-FULL 7/16-20 | 1 | $6.47 | |
| 6 | 2603-397 | INSERT,SKI | 1 | $15.11 | |
| 7 | 0623-728 | WSHR, FLAT-HARD(.469 X 1.125 X .100 THK) | 1 | $3.02 | |
| 7 | 0623-776 | SCREW, CAP-HH 7/16-20 X 5.50 W/HOLE | 1 | $14.95 | |
| 8 | 0603-036 | DAMPER, SKI RUBBER | 1 | $17.87 | |
| 9 | 0703-269 | SADDLE,SKI-ASSY | 1 | $78.95 | |
| 10 | 0603-621 | INSERT-SKI SADDLE | 1 | $4.95 | |
| 11 | 0123-458 | PIN,COTTER 1/8X1 | 1 | $0.40 | |
| 12 | 0623-552 | SCREW,CAP-HH 7/16-20 X 4.50 W/HOLE | 1 | $12.35 | |
| 13 | 2703-006 | SPINDLE, RH-FAB- PLAT | 1 | $293.95 | |
| 13 | 2703-007 | SPINDLE, LH-FAB- PLAT | 1 | $326.95 | |
| 14 | 0603-647 | INSERT,ALUM.-SPINDLE | 1 | $5.78 | |
| 15 | 0623-010 | ZERK, GREASE (LONG) | 1 | $2.47 | |
| 16 | 0603-158 | BEARING,GARLOCK 12DU12 | 1 | $8.21 | |
| 17 | 0623-831 | CAP, SPINDLE (RDR-10-1420) | 1 | $1.50 | |
| 17 | 2603-598 | HANDLE,PLASTIC SKI-BLK | 1 | $33.95 | |
| 18 | 6611-800 | DECAL, SPINDLE, RH-T660 | 1 | $34.95 | |
| 18 | 6611-801 | DECAL, SPINDLE, LH-T660 | 1 | $34.95 | |
| 18 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 19 | 8017-581 | SCREW,MACH-TSTRH 1/4-20 X 7/8 GR2 Z&Y | 1 | $5.45 | |
| 19 | 8017-582 | R/B 1623-689 | 1 | $0.65 | |
| 20 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 20 | 8017-587 | SCREW,MACH-TSTRH 1/4-20 X 2.0 GR2 Z&Y | 1 | $1.92 | |
| 21 | 0603-624 | HANDLE,PLASTIC-BLACK | 1 | $32.95 | |
| 22 | 8048-426 | NUT,HEX FLG-TOP LOCK 5/16-18 GR F Z&Y | 1 | $1.23 | |
| 23 | 8020-143 | SCREW,CAP-HFH 5/16-18 X 3.50 G5 Z&Y | 1 | $21.95 | |
| 24 | 8020-135 | SCREW,CAP-HFH 5/16-18 X 1.50 G5 Z&Y | 1 | $1.64 |
