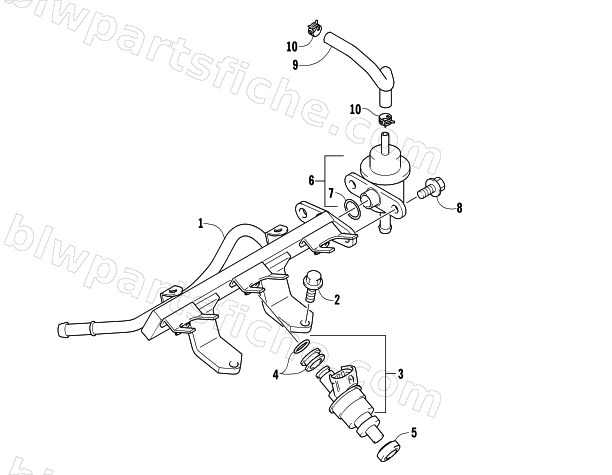

2006 Arctic Cat T660 TURBO TRAIL LE — DELIVERY PIPE ASSEMBLY
2006 T660 TURBO TRAIL LE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3006-835 | PIPE COMP,DELIVERY | 1 | $200.95 | |
| 2 | 3007-392 | BOLT | 1 | $3.95 | |
| 3 | 3006-834 | INJECTOR,FUEL ASS'Y-'04 660 L/C TURBO | 1 | $647.95 | |
| 4 | 3006-237 | GROMMETSET,FUEL INJ '02 660 L/C | 1 | $74.95 | |
| 5 | 3006-126 | CUSHION,8.7X16.3X5.5 '02 660 L/C | 1 | $49.95 | |
| 6 | 3006-880 | REGULATOR ASS'Y,FUEL PRESSURE | 1 | $453.95 | |
| 7 | 3006-881 | RING (660 TURBO) | 1 | $22.01 | |
| 8 | 3007-371 | BOLT (6X12) | 1 | $3.16 | |
| 9 | 3006-851 | HOSE,3.5X7.5X601 | 1 | $24.77 | |
| 10 | 3008-037 | CLAMP,HOSE,M6 | 1 | $3.85 |
