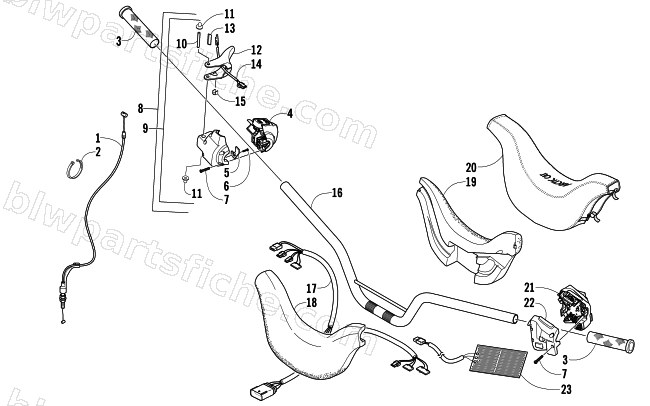

HANDLEBAR AND CONTROLS
2006 T660 TURBO TRAIL LE
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0687-189 | CABLE, THROTTLE-SINGLE W/O OIL | 1 | $57.95 | |
| 2 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 3 | 2606-084 | GRIP, HANDLEBAR-5.60" | 1 | $16.49 | |
| 4 | 0609-754 | CONTROL, R/H-FRONT | 1 | $75.95 | |
| 5 | 0609-792 | COVER, CONTROL-RH-CONNECTOR RETENTION | 1 | $1.92 | |
| 6 | 0609-793 | SCREW, #4-24 HI-LO X .50" | 1 | $0.26 | |
| 7 | 0609-791 | SCREW,SELF TAP-TXPNH #8-18 X .875 HI-LO | 1 | $0.12 | |
| 8 | 0609-886 | CONTROL,THROTTLE-R/H-REAR (35MM) | 1 | $129.95 | |
| 9 | 0609-859 | KIT, THROTTLE LEVER MOUNTING | 1 | $30.95 | |
| 12 | 0609-796 | LEVER, THROTTLE-35MM | 1 | $28.95 | |
| 13 | 0617-248 | PAD, INSULATOR-THUMB WARMER | 1 | $1.37 | |
| 14 | 0609-827 | ELEMENT,THUMBWARMER-H/L (15V) | 1 | $74.95 | |
| 15 | 0609-595 | CLIP,RETAINER-TW HARNESS | 1 | $2.47 | |
| 16 | 1705-072 | HANDLEBAR - PTD BLK | 1 | $74.95 | |
| 17 | 1686-231 | HARNESS, HANDLEBAR-06 PROD | 1 | $145.95 | |
| 18 | 0605-845 | PAD, HANDLEBAR-FRONT | 1 | $27.95 | |
| 19 | 0605-846 | PAD, HANDLEBAR-REAR | 1 | $24.95 | |
| 20 | 3706-196 | COVER, HANDLEBAR PAD-TOURING | 1 | $78.95 | |
| 21 | 0609-703 | CONTROL, L/H-DIMMER W/PTT-FRONT | 1 | $147.95 | |
| 22 | 0609-756 | CONTROL, L/H-REAR | 1 | $22.01 | |
| 23 | 0609-714 | ELEMENT, HW- H/L-RH | 1 | $86.95 | |
| 23 | 0609-715 | ELEMENT, HW- H/L-LH | 1 | $89.95 |
