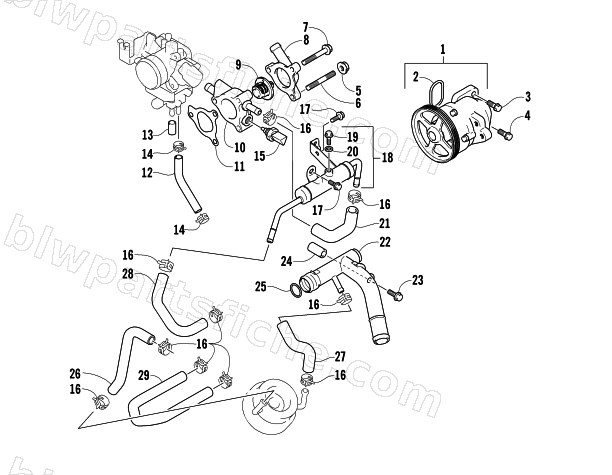

2006 Arctic Cat T660 TURBO TRAIL LE — WATER PUMP AND THERMOSTAT ASSEMBLIES
2006 T660 TURBO TRAIL LE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3007-033 | PUMP SET,WATER | 1 | $572.95 | |
| 2 | 3006-953 | O-RING,WATER PUMP | 1 | $17.87 | |
| 3 | 3008-533 | BOLT,M8X30 | 1 | $3.19 | |
| 4 | 3007-396 | BOLT, CYLINDER HEAD-M8X40 | 1 | $4.68 | |
| 5 | 3007-390 | NUT,INTER COOLER | 1 | $3.16 | |
| 6 | 3006-375 | STUD BOLT,660L/C | 1 | $6.95 | |
| 7 | 3007-408 | BOLT | 1 | $4.26 | |
| 8 | 3006-228 | CAP,WTR THERMO '02 660 L/C | 1 | $81.95 | |
| 9 | 3006-230 | THERMOSTAT COMP,WTR-82 C '02 660 L/C | 1 | $106.95 | |
| 10 | 3006-836 | CASE,THERMO | 1 | $120.95 | |
| 11 | 3006-232 | GASKET,THERMO CASE '02 660 L/C | 1 | $20.63 | |
| 12 | 3006-600 | HOSE,THROTTLE BODY INLET | 1 | $30.95 | |
| 13 | 3006-120 | CAP, '02 660 L/C | 1 | $9.95 | |
| 14 | 3006-128 | CLIP, '02 660 L/C | 1 | $13.73 | |
| 15 | 3006-212 | SENSOR,WATER TEMP '02 660 L/C | 1 | $249.95 | |
| 16 | 3006-602 | CLIP,THERMO TO TANK | 1 | $4.68 | |
| 17 | 3007-371 | BOLT (6X12) | 1 | $3.16 | |
| 18 | 3006-839 | TANK ASS'Y,WATER | 1 | $113.95 | |
| 19 | 3006-598 | BOLT,AIR RELEASE | 1 | $5.92 | |
| 20 | 3006-599 | GASKET-660 L/C | 1 | $6.47 | |
| 21 | 3006-595 | HOSE,THERMO TO TANK | 1 | $33.95 | |
| 22 | 3006-594 | PIPE,WTR INTAKE | 1 | $223.95 | |
| 23 | 3007-399 | BOLT,INLET PIPE | 1 | $3.85 | |
| 24 | 3006-114 | SPACER, '02 660 L/C | 1 | $33.95 | |
| 25 | 3006-234 | O-RING,WTR INLET PIPE '02 660 L/C | 1 | $12.95 | |
| 26 | 3007-004 | HOSE,AIR INLET TO OC | 1 | $38.95 | |
| 27 | 3006-596 | HOSE,O/C TO INLET PIPE | 1 | $33.95 | |
| 28 | 3006-837 | HOSE,TANK TO TURBO | 1 | $28.95 | |
| 29 | 3007-003 | HOSE,TURBO TO OC | 1 | $44.95 |
