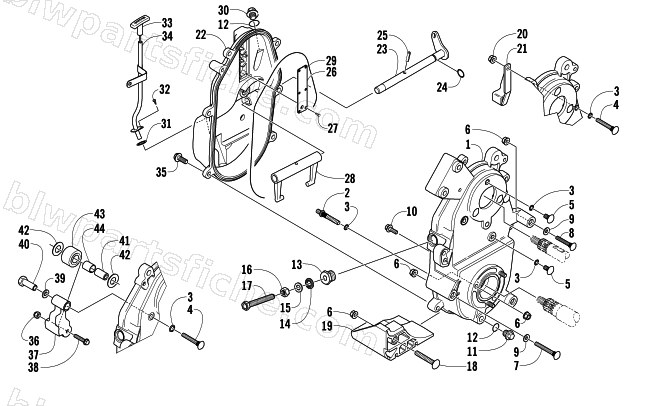

DROPCASE AND CHAIN TENSION ASSEMBLY
2006 Z 370 LX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0702-450 | DROPCASE,W/STUDS-S/P ASSY | 1 | $224.95 | |
| 2 | 0623-317 | STUD,5/16-18 RIBBED-DROPCASE | 1 | $20.63 | |
| 3 | 0607-025 | O-RING, STUD | 1 | $1.50 | |
| 4 | 0623-117 | BOLT,RIB NECK-RDH 1/4-20X1.00 Z&Y | 1 | $20.63 | |
| 5 | 0123-523 | BOLT,RIB NECK-RDH 5/16-18X.625 Z&Y | 1 | $3.02 | |
| 6 | 8047-426 | NUT,HEX FLG-NY LOCK 5/16-18 GR F Z&Y | 1 | $0.68 | |
| 7 | 8011-143 | BOLT,CRG 5/16-18X3.50 GR1 Z&Y | 1 | $1.23 | |
| 8 | 8011-139 | BOLT,CRG 5/16-18X2.50 GR1 Z&Y | 1 | $1.23 | |
| 9 | 8050-252 | WASHER,FLAT- 5/16 X .875 X .063 Z&Y | 1 | $0.68 | |
| 10 | 8020-135 | SCREW,CAP-HFH 5/16-18 X 1.50 G5 Z&Y | 1 | $1.64 | |
| 11 | 0602-479 | PLUG, DRAIN-MAGNETIC | 1 | $22.01 | |
| 12 | 1602-213 | O-RING,2-013 | 1 | $0.40 | |
| 13 | 0602-876 | ADAPTER,MANUAL ADJUST | 1 | $20.63 | |
| 14 | 2623-057 | WASHER,SEALING-RUBBER (YM) | 1 | $1.92 | |
| 15 | 8050-272 | WASHER,FLAT- 3/8 X .734 X .063 Z&Y | 1 | $0.26 | |
| 16 | 0123-150 | NUT,JAM 3/8-16 | 1 | $0.40 | |
| 17 | 1602-101 | SCREW, CHAIN,ROLLER | 1 | $5.95 | |
| 18 | 8011-135 | BOLT,CRG,5/16-18X1.50 GR1 Z&Y | 1 | $0.95 | |
| 19 | 0616-964 | GUARD,DROPCASE | 1 | $123.95 | |
| 20 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 21 | 2602-078 | BRKT, CHAIN BACKING-20 T | 1 | $21.95 | |
| 22 | 1602-222 | COVER, DROPCASE-PTD BLK-REV (DIPSTICK) | 1 | $159.95 | |
| 23 | 0702-350 | SHAFT,SHIFT FORK-PTD BLK | 1 | $85.95 | |
| 24 | 0602-021 | SEAL,O-RING .50 OD | 1 | $0.54 | |
| 25 | 0623-542 | PIN,SPRING-3/16 X 7/8 COILED BLK | 1 | $1.92 | |
| 26 | 1602-151 | COVER, OIL VENT - REVERSE | 1 | $38.95 | |
| 27 | 0623-081 | SCREW,SELF TAP-PHPNH 8-32X.31 F Z&Y | 1 | $0.26 | |
| 28 | 0602-085 | FORK,SHIFT-MACHINED | 1 | $96.95 | |
| 29 | 0602-437 | O-RING,DROPCASE COVER | 1 | $13.73 | |
| 30 | 0623-293 | PLUG, DRAIN | 1 | $2.61 | |
| 31 | 0605-014 | O-RING,RUBBER | 1 | $0.26 | |
| 32 | 0623-914 | SCREW,SELF TAP THD LK-TSPNH 10-24X.375 | 1 | $0.26 | |
| 33 | 1602-107 | DIPSTICK, DROPCASE | 1 | $53.95 | |
| 34 | 1602-106 | TUBE, DIPSTICK - WELDMENT | 1 | $39.95 | |
| 35 | 8020-134 | SCREW,CAP-HFH 5/16-18 X 1.25 G5 Z&Y | 1 | $1.50 | |
| 36 | 0623-122 | NUT ,FLEX LOCK-THIN 1/4-20 | 1 | $1.50 | |
| 37 | 0602-675 | ARM, CHAIN ROLLER | 1 | $35.95 | |
| 38 | 8002-045 | SCREW, CAP-HH 1/4-20 X 1.50 G5 Z&Y | 1 | $0.95 | |
| 39 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 40 | 0602-681 | NUT, ROLLER ARM | 1 | $82.95 | |
| 41 | 0602-676 | SHAFT, CHAIN ROLLER | 1 | $20.95 | |
| 42 | 0623-525 | WASHER, FLAT-.5 X 1.01 OD HARDENED | 1 | $7.72 | |
| 43 | 0702-129 | ROLLER ASSY-CHAIN TIGHTENER | 1 | $60.95 | |
| 44 | 0602-383 | BEARING,CHAIN TIGHTENER-1/2 ID X .75 | 1 | $3.95 |
