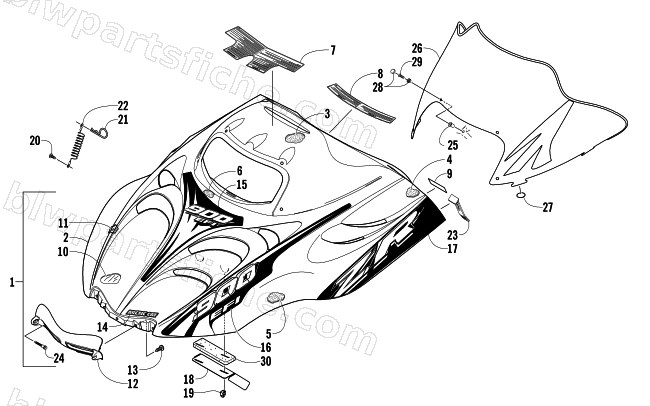

2006 Arctic Cat ZR 900 EFI SNO PRO — HOOD AND WINDSHIELD ASSEMBLY
2006 ZR 900 EFI SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1718-877 | HOOD W/DECALS-BLK-EFI-ZR 900 EFI | 1 | $1,328.95 | |
| 2 | 1718-722 | HOOD W/O DECALS-BLK | 1 | $1,090.95 | |
| 3 | 0617-478 | FOAM,HOOD-MIDDLE UPR RH | 1 | $19.25 | |
| 3 | 0617-479 | FOAM,HOOD-MIDDLE UPR LH | 1 | $19.25 | |
| 4 | 0617-480 | FOAM,HOOD-REAR RH | 1 | $11.95 | |
| 4 | 0617-481 | FOAM,HOOD-REAR LH | 1 | $15.11 | |
| 5 | 0617-476 | FOAM,HOOD-UPR RH | 1 | $19.25 | |
| 5 | 0617-477 | FOAM,HOOD-UPR LH | 1 | $19.25 | |
| 6 | 0617-475 | FOAM,HOOD-MIDDLE | 1 | $15.11 | |
| 7 | 3611-485 | DECAL, WARNING-GENL & BRAKE-ENG & FRNCH | 1 | $35.95 | |
| 8 | 3611-970 | DECAL, CAUTION-ENG/BTRY/FUEL-ENG &FRCH | 1 | $41.95 | |
| 9 | 3611-509 | DECAL, WARNING-SEATING CAPACITY | 1 | $72.95 | |
| 10 | 1606-938 | FOIL,HOOD-RH | 1 | $54.95 | |
| 10 | 1606-939 | FOIL, HOOD-LH | 1 | $75.95 | |
| 11 | 2606-233 | FOIL, HOOD-UPR RH | 1 | $89.95 | |
| 12 | 1606-720 | HINGE, HOOD | 1 | $45.95 | |
| 13 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 14 | 3611-679 | DECAL,HOOD-"ARCTIC CAT"- WHITE (CURVED) | 1 | $45.95 | |
| 15 | 7611-124 | DECAL,HOOD-BLK CREST-"900 EFI" | 1 | $85.95 | |
| 16 | 7611-126 | DECAL,HOOD-BLK UPR RH-"900 EFI" | 1 | $56.95 | |
| 16 | 7611-127 | DECAL,HOOD-BLK UPR LH-"900 EFI" | 1 | $50.95 | |
| 17 | 7611-128 | DECAL,HOOD-BLK LWR RH-"ZR" | 1 | $82.95 | |
| 17 | 7611-129 | DECAL,HOOD-BLK LWR LH-"ZR" | 1 | $91.95 | |
| 18 | 2606-613 | AIR DEFLECTOR | 1 | $42.95 | |
| 19 | 0123-394 | CLIP CABLE | 1 | $1.37 | |
| 22 | 1606-158 | CABLE HOOD 35.0" | 1 | $15.11 | |
| 23 | 1606-067 | STRAP, HOLDDOWN- HOOD | 1 | $12.35 | |
| 24 | 1623-016 | SCREW, HEX DOME HEAD -1/4-20 x1.24 Z&Y | 1 | $27.95 | |
| 25 | 0623-845 | NUT, EXP,10-32 | 1 | $2.47 | |
| 26 | 4606-163 | WINDSHIELD,BLK-W/GRAPHIC | 1 | $183.95 | |
| 27 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 | |
| 28 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 29 | 0623-902 | SCREW, MACH-PHTRH-10-32X5/8-ZY | 1 | $0.95 | |
| 30 | 0617-494 | FOAM,AIR DEFLECTOR | 1 | $4.95 |
