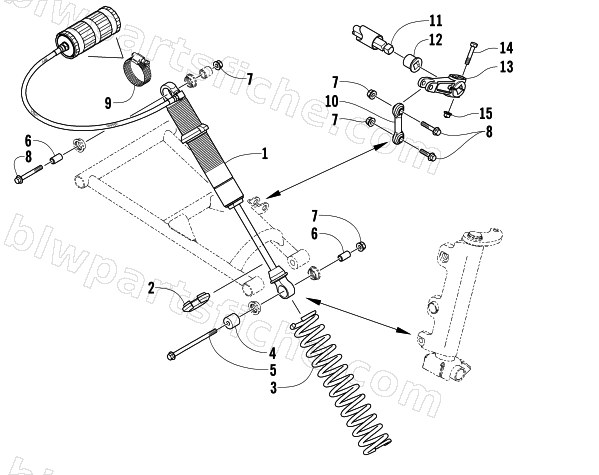

2006 Arctic Cat ZR 900 EFI SNO PRO — SHOCK ABSORBER AND SWAY BAR ASSEMBLY
2006 ZR 900 EFI SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1703-690 | SHOCK,SKI-W/REMOTE-RH | 1 | $755.95 | |
| 1 | 1703-691 | SHOCK,SKI-W/REMOTE-LH | 1 | $755.95 | |
| 2 | 1603-890 | RETAINER,SPRING | 1 | $13.73 | |
| 3 | 1703-692 | SPRING,COMPRESSION-FIRE RED | 1 | $85.95 | |
| 4 | 0603-648 | SPACER,SHOCK-MTG | 1 | $15.11 | |
| 5 | 8020-232 | SCREW,CAP-HFH 3/8-16 X 3.25 Z&Y | 1 | $5.65 | |
| 6 | 3604-594 | AXLE,SHOCK EYELET-10(ID)X20.7 MM | 1 | $4.40 | |
| 7 | 8047-486 | NUT,HEX FLG-NY LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 8 | 8020-226 | SCREW,CAP-HFH 3/8-16 X 1.75 Z&Y | 1 | $2.95 | |
| 9 | 0214-025 | CLAMP,HOSE #32 | 1 | $4.40 | |
| 10 | 1603-414 | LINK, SWAY BAR, FIXED (PLASTIC) | 1 | $37.95 | |
| 11 | 1703-618 | SWAY BAR,7/16 DIA X 28.72"-PTD BLK | 1 | $133.95 | |
| 12 | 0603-151 | BEARING,SWAY BAR-SQUARE | 1 | $23.39 | |
| 13 | 2603-307 | ARM, SWAY BAR-W/INSERT | 1 | $110.95 | |
| 14 | 8002-137 | SCREW,CAP-HH 5/16-18 X2.00 G5 Z&Y | 1 | $1.09 | |
| 15 | 8047-426 | NUT,HEX FLG-NY LOCK 5/16-18 GR F Z&Y | 1 | $0.68 |
