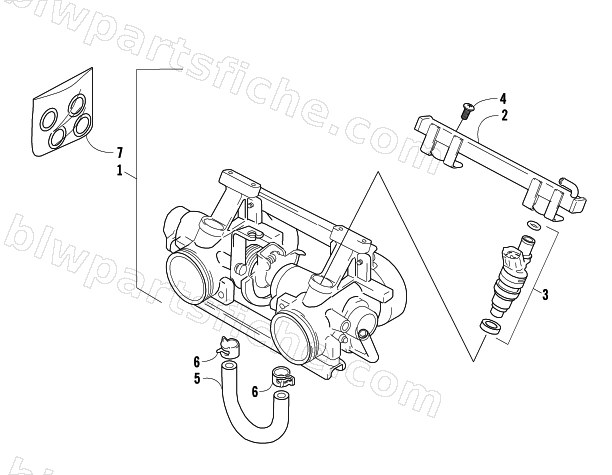

2006 Arctic Cat ZR 900 EFI SNO PRO — THROTTLE BODY ASSEMBLY
2006 ZR 900 EFI SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3006-057 | BODY ASSY,THROTTLE 02 800 EFI(SQU) | 1 | $2,221.95 | |
| 2 | 3006-062 | PIPE ASSY,FUEL DEL 02 800 EFI | 1 | $889.95 | |
| 3 | 3007-699 | INJECTOR,FUEL (SQU) | 1 | $571.95 | |
| 4 | 3007-443 | SCREW | 1 | $2.06 | |
| 5 | 3006-078 | HOSE,'02 800 EFI | 1 | $71.95 | |
| 6 | 3004-193 | CLAMP, HOSE-EFI THROTTLE BODY,M12 | 1 | $4.95 | |
| 7 | 3005-692 | O-RING SET | 1 | $118.95 |
