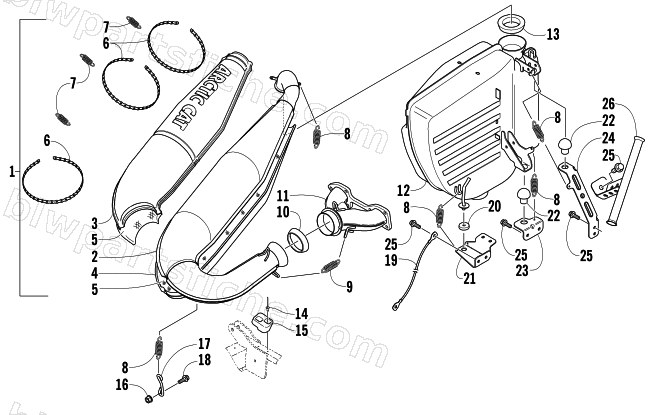

EXHAUST ASSEMBLY
2006 ZR 900 EFI
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1712-072 | CHAMBER,EXPANSION-FAB | 1 | $593.95 | |
| 2 | 0712-988 | CHAMBER,EXPANSION-PTD BLK | 1 | $450.95 | |
| 3 | 1612-504 | COVER, EXP,CHAMBER UPPER | 1 | $112.95 | |
| 4 | 1612-726 | COVER,EXP CHAMBER-LOWER | 1 | $118.95 | |
| 5 | 1612-506 | WRAP,EXH-EXP CHAMBER-UPPER | 1 | $30.95 | |
| 6 | 0624-552 | TIE, PERFORATED BAND-5FT | 1 | $20.63 | |
| 6 | 0624-541 | TIE,PERFORATED BAND-IT( 25' ) | 1 | $110.95 | |
| 7 | 1612-178 | SPRING, EXHAUST STRAP | 1 | $3.85 | |
| 8 | 0612-471 | SPRING,EXHAUST | 1 | $12.35 | |
| 9 | 2612-399 | SPRING,EXTENSION | 1 | $3.71 | |
| 10 | 1612-014 | GASKET,EXHAUST HEADPIPE | 1 | $37.95 | |
| 11 | 1712-064 | MANIFOLD, EXHAUST-MACH-800 | 1 | $450.95 | |
| 12 | 0712-999 | RESONATOR-PTD BLK | 1 | $631.95 | |
| 13 | 0612-993 | GASKET,EXHAUST - TAIL PIPE (99-700) | 1 | $29.95 | |
| 14 | 8061-652 | RIVET,BLIND-LF AS612 PLAIN | 1 | $1.19 | |
| 15 | 1612-724 | MOUNT,RUBBER-EXPANSION CHAMBER | 1 | $26.95 | |
| 16 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 17 | 0712-913 | BRKT,WIREFORM-EXP. CHAMBER-PTD BLK | 1 | $6.47 | |
| 18 | 8020-040 | SCREW,CAP-HFH 1/4-20 X 0.750 Z&Y | 1 | $1.78 | |
| 19 | 0686-126 | HARNESS,ENGINE-GROUND | 1 | $12.35 | |
| 20 | 1612-319 | BUSHING, STEM RESONATOR MTG | 1 | $3.95 | |
| 21 | 0712-705 | BRKT, MTG-RESONATOR-PTD BLK | 1 | $36.95 | |
| 22 | 0612-111 | BUMPER,MOLDED-RUBBER | 1 | $16.49 | |
| 23 | 0712-992 | BRKT,MTG-RESONATOR/CHASSIS-PTD BLK | 1 | $13.73 | |
| 24 | 1712-160 | BRKT,MTG-RESONATOR/CHASSIS-PTD BLK | 1 | $41.95 | |
| 25 | 8020-039 | SCREW,CAP-HFH 1/4-20 X 0.625 Z&Y | 1 | $0.95 | |
| 26 | 2706-837 | GUIDE,ROPE-PTD BLK | 1 | $40.95 |
