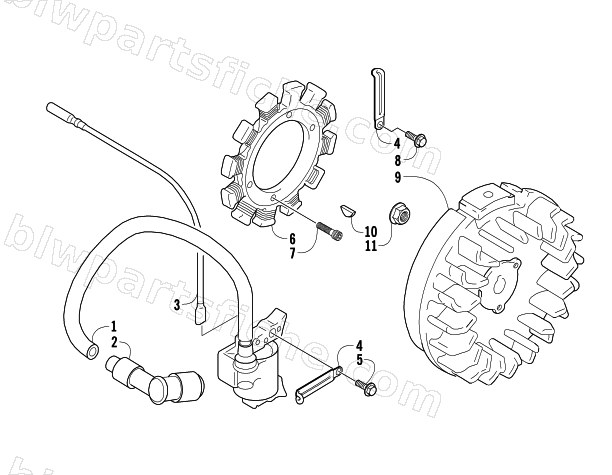

MAGNETO
2007 AC 120
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0693-326 | COIL ASSY, IGNITION | 1 | $125.95 | |
| 2 | 0691-322 | CAP ASSY, SPARK PLUG | 1 | $27.95 | |
| 3 | 0693-263 | LEAD WIRE, MAGNETO STOP | 1 | $17.87 | |
| 4 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 5 | 0693-242 | BOLT, M6X23 | 1 | $2.95 | |
| 6 | 0694-029 | STATOR | 1 | $573.95 | |
| 7 | 0694-023 | BOLT,6X20 | 1 | $3.95 | |
| 8 | 0693-241 | BOLT, M6X12 | 1 | $3.16 | |
| 9 | 0694-030 | ROTOR/FLYWHEEL | 1 | $481.95 | |
| 10 | 3004-540 | KEY,WOODRUFF,M4 | 1 | $6.34 | |
| 11 | 3007-556 | NUT | 1 | $3.95 |
