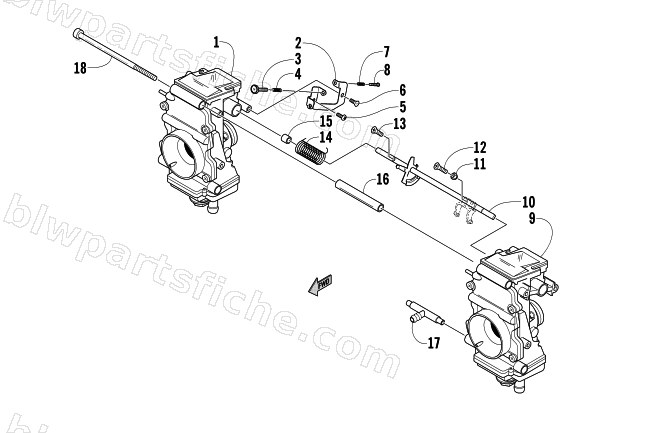

2007 Arctic Cat AC 600 MODIFIED SNO PRO — CARBURETOR - EXTERNAL PARTS
2007 AC 600 MODIFIED SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 6506-331 | BRACKET | 1 | $50.95 | |
| 3 | 6506-061 | ADJUSTER SCREW | 1 | $20.63 | |
| 4 | 6506-062 | SPRING | 1 | $5.51 | |
| 5 | 6506-064 | SCREW | 1 | $1.37 | |
| 6 | 6506-063 | SCREW | 1 | $1.37 | |
| 7 | 6506-056 | SPRING | 1 | $3.95 | |
| 8 | 6506-134 | SCREW | 1 | $3.95 | |
| 11 | 6506-041 | RING | 1 | $33.95 | |
| 12 | 6506-042 | SCREW | 1 | $3.44 | |
| 13 | 6506-046 | SCREW | 1 | $3.44 | |
| 14 | 6506-330 | TORSION SPRING | 1 | $24.77 | |
| 15 | 6506-048 | SPACER | 1 | $3.95 | |
| 16 | 6506-152 | SPACER | 1 | $34.95 | |
| 17 | 6506-140 | FITTING, TEE | 1 | $53.95 | |
| 18 | 6506-065 | BOLT | 1 | $17.87 |
