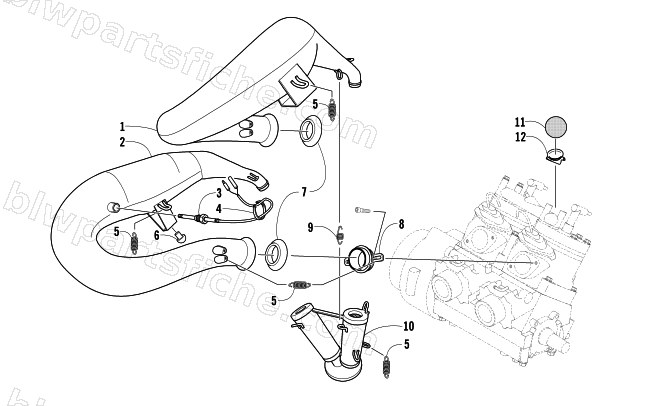

2007 Arctic Cat AC 600 MODIFIED SNO PRO — EXHAUST ASSEMBLY
2007 AC 600 MODIFIED SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1712-330 | CHAMBER,EXPANSION-MAG-SPEEDWREX | 1 | $927.95 | |
| 2 | 1712-331 | CHAMBER,EXPANSION-PTO-SPEEDWREX | 1 | $829.95 | |
| 3 | 0630-145 | SENSOR,EXHAUST TEMP-1/4" DIA | 1 | $220.95 | |
| 4 | 0123-811 | TIE,CABLE-4 INCH PLT1M | 1 | $0.26 | |
| 5 | 2612-142 | SPRING,PIPE-LONG-SPEEDWERX | 1 | $21.95 | |
| 6 | 0612-111 | BUMPER,MOLDED-RUBBER | 1 | $16.49 | |
| 9 | 2612-143 | SPRING,PIPE-SHORT-SPEEDWERX | 1 | $20.95 | |
| 10 | 1712-333 | SILENCER,EXHAUST-SPEEDWERX | 1 | $395.95 | |
| 11 | 1612-678 | BALL, 1 7/8" DIA-MANIFOLD MOUNT | 1 | $32.95 |
