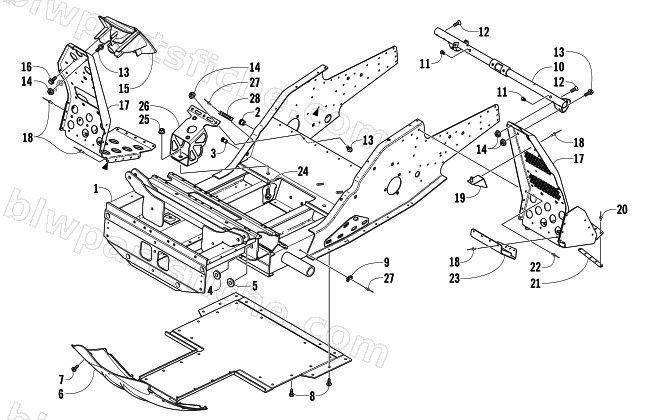

2007 Arctic Cat BEARCAT 570 LONG TRACK — FRONT FRAME AND FOOTREST ASSEMBLY
2007 BEARCAT 570 LONG TRACK
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0707-731 | CHASSIS,FRT END-UNPTD-S/P ASSY | 1 | $1,242.95 | |
| 2 | 0623-581 | INSERT, A L SERIES AL57-518-150 5/16-18 | 1 | $3.16 | |
| 3 | 0623-582 | INSERT, A L SERIES (1/4-20) | 1 | $3.16 | |
| 4 | 0607-420 | INSERT,LOWER A-ARM MTG. | 1 | $2.47 | |
| 5 | 0607-421 | INSERT,UPPER A-ARM MTG. | 1 | $2.47 | |
| 7 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 8 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 9 | 0623-228 | MOUNT,CABLE TIE | 1 | $2.95 | |
| 10 | 0705-866 | SUPPORT,STEERING-S/P ASSY | 1 | $89.95 | |
| 11 | 0623-779 | INSERT,ALS4-1032-130 | 1 | $3.16 | |
| 12 | 8019-614 | SCREW,MACH-TSPNH 1/4-20 X 1 1/4 GR2 BLK | 1 | $0.95 | |
| 13 | 8020-040 | SCREW,CAP-HFH 1/4-20 X 0.750 Z&Y | 1 | $1.78 | |
| 14 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 15 | 1706-099 | CUP,RECOIL ROPE W/REV. & ALARM HOLES | 1 | $37.95 | |
| 16 | 0623-297 | SCREW,SELF TAP-HWH #8X3/4 TYPE A | 1 | $0.68 | |
| 17 | 2606-444 | FOOTREST, RH | 1 | $100.95 | |
| 17 | 2606-733 | FOOTREST,LH-W/HOLES | 1 | $92.95 | |
| 18 | 0623-166 | RIVET,CHERRY-5/32 X 3/16 | 1 | $0.95 | |
| 19 | 0705-173 | BRKT, FASTENER-GUARD-PTD BLK | 1 | $20.95 | |
| 20 | 0623-282 | RIVET,3/16 MONOBOLT | 1 | $0.95 | |
| 21 | 2706-110 | PLATE,BACKING-FOOTREST-PTD BLK | 1 | $6.95 | |
| 22 | 0623-341 | RIVET,3/16 MONOBOLT (.214/.437) | 1 | $1.23 | |
| 23 | 2606-458 | PLATE, BACKING-FOOTREST-RH | 1 | $14.95 | |
| 23 | 2606-459 | PLATE, BACKING-FOOTREST-LH | 1 | $13.95 | |
| 24 | 8020-131 | SCREW,CAP-HFH 5/16-18 X0.875 G5 Z&Y | 1 | $1.50 | |
| 25 | 8047-426 | NUT,HEX FLG-NY LOCK 5/16-18 GR F Z&Y | 1 | $0.68 | |
| 26 | 0708-398 | BRKT, ENG MTG-L/W-PTD BLK | 1 | $33.95 | |
| 27 | 8060-506 | RIVET,BLIND-DH SS54 BLK | 1 | $0.26 | |
| 28 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 |
