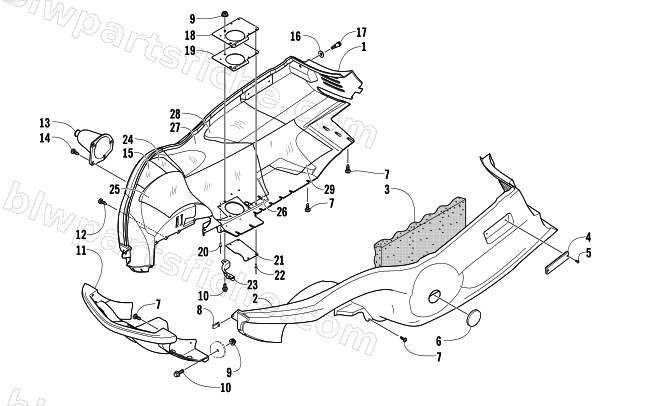

2007 Arctic Cat BEARCAT WIDE TRACK TURBO — BELLY PAN AND FRONT BUMPER ASSEMBLY
2007 BEARCAT WIDE TRACK TURBO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3706-166 | BELLYPAN, OUTER-RH PLAT-ROUTED | 1 | $187.95 | |
| 1 | 3706-286 | BELLYPAN, OUTER-RH-OS-PLAT-ROUTED | 1 | $524.95 | |
| 2 | 4606-021 | BELLYPAN, OUTER-LH-PLATINUM-BCWT | 1 | $490.95 | |
| 3 | 0617-315 | FOAM,BELLYPAN LH | 1 | $33.95 | |
| 4 | 0606-526 | REFLECTOR,FRONT-YELLOW | 1 | $3.02 | |
| 5 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 6 | 1623-412 | PLUG,BELLYPAN-2.00-PLATINUM | 1 | $20.95 | |
| 7 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 8 | 0623-427 | NUT,U-1/4X20 | 1 | $6.83 | |
| 9 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 10 | 8020-040 | SCREW,CAP-HFH 1/4-20 X 0.750 Z&Y | 1 | $1.78 | |
| 11 | 3706-015 | BUMPER, FRONT-ROUTED-PLATINUM | 1 | $124.95 | |
| 12 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 13 | 0605-332 | BOOT,STEERING-DRAG LINK-RH | 1 | $40.95 | |
| 13 | 0605-333 | BOOT,STEERING-DRAG LINK-LH | 1 | $28.95 | |
| 14 | 1623-429 | SCREW, SELF TAP - #12X1.00 TYPE AB-Z&Y | 1 | $0.95 | |
| 15 | 0619-206 | TAPE,ALUM FOIL - 6" X 30 FT | 1 | $7.77 | |
| 16 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 17 | 0623-855 | SCREW, HEX,DOME HEAD SHOULDER-1/4-20X.50 | 1 | $13.73 | |
| 18 | 1712-047 | RING,EXH OUTLET-UPPER-PTD BLK | 1 | $13.95 | |
| 19 | 1612-870 | SEAL, EXH,OUTLET | 1 | $17.95 | |
| 20 | 8061-490 | RIVET,BLIND-LF SS58 ZINC | 1 | $1.37 | |
| 21 | 1712-049 | DEFLECTOR,EXHAUST-PTD BLK | 1 | $12.35 | |
| 22 | 8060-510 | RIVET,BLIND-DH SS58 BLK | 1 | $0.68 | |
| 23 | 0712-879 | DEFLECTOR,EXHAUST-OUTLET-PTD BLK | 1 | $13.95 | |
| 24 | 4606-362 | FOIL, PROTECTIVE-LOWER/TOP | 1 | $13.73 | |
| 25 | 4606-361 | FOIL, PROTECTIVE-UPPER | 1 | $12.35 | |
| 26 | 4606-364 | FOIL, PROTECTIVE-LOWER/EXHAUST | 1 | $16.49 | |
| 27 | 4606-365 | FOIL, PROTECTIVE-UPPER-TOP-LG | 1 | $15.11 | |
| 28 | 4606-363 | FOIL, PROTECTIVE-UPPER-BUMP | 1 | $12.35 | |
| 29 | 4606-366 | FOIL, PROTECTIVE-UPPER-TOP-BUMP | 1 | $12.35 |
