2007 Arctic Cat BEARCAT WIDE TRACK TURBO — HANDLEBAR AND CONTROLS

2007 BEARCAT WIDE TRACK TURBO

Scroll / pinch to zoom · drag or arrow keys to pan · double-click resets

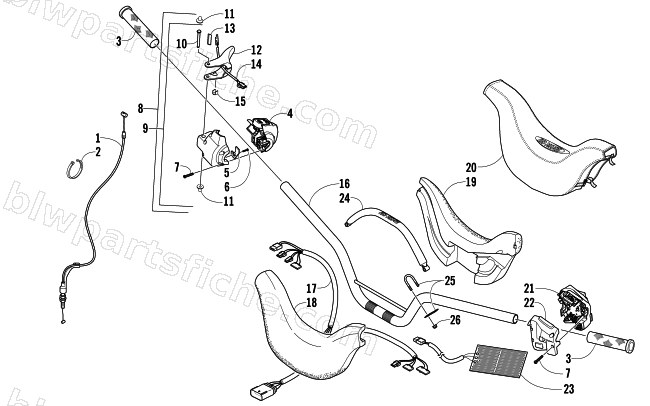

HANDLEBAR AND CONTROLS diagram

Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.

Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.

# Part No. Description Qty Price
1 0687-189 CABLE, THROTTLE-SINGLE W/O OIL 1 $57.95
2 0123-788 TIE,CABLE-8.5/7.5/7.4 1 $0.12
3 2606-084 GRIP, HANDLEBAR-5.60" 1 $16.49
4 0609-754 CONTROL, R/H-FRONT 1 $75.95
5 0609-792 COVER, CONTROL-RH-CONNECTOR RETENTION 1 $1.92
6 0609-793 SCREW, #4-24 HI-LO X .50" 1 $0.26
7 0609-791 SCREW,SELF TAP-TXPNH #8-18 X .875 HI-LO 1 $0.12
8 0609-886 CONTROL,THROTTLE-R/H-REAR (35MM) 1 $129.95
9 0609-859 KIT, THROTTLE LEVER MOUNTING 1 $30.95
12 0609-796 LEVER, THROTTLE-35MM 1 $28.95
13 0617-248 PAD, INSULATOR-THUMB WARMER 1 $1.37
14 0609-827 ELEMENT,THUMBWARMER-H/L (15V) 1 $74.95
15 0609-595 CLIP,RETAINER-TW HARNESS 1 $2.47
16 1705-072 HANDLEBAR - PTD BLK 1 $74.95
17 1686-231 HARNESS, HANDLEBAR-06 PROD 1 $145.95
18 0605-845 PAD, HANDLEBAR-FRONT 1 $27.95
19 0605-846 PAD, HANDLEBAR-REAR 1 $24.95
20 3706-671 COVER, HANDLEBAR PAD-07 BCWT 1 $77.95
21 0609-929 CONTROL,LH-W/O PTT-FRT 1 $96.95
22 0609-883 CONTROL,L/H-REAR 1 $13.73
23 0609-714 ELEMENT, HW- H/L-RH 1 $86.95
23 0609-715 ELEMENT, HW- H/L-LH 1 $89.95
24 0605-448 STRAP, MTN FORMED - W/NYLON - BLK - PS 1 $127.95
25 1623-660 U-BOLT W/PLATE-1/4-20 X 1 X 1 3/4 1 $13.95
26 8047-366 NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y 1 $0.40
