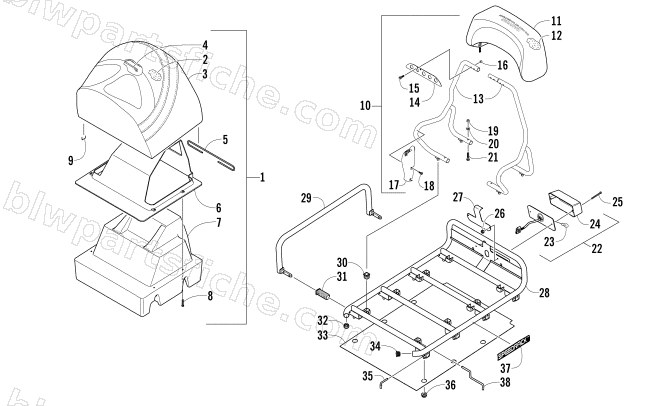

2007 Arctic Cat BEARCAT WIDE TRACK TURBO — REAR SEAT, BACKREST, AND RACK ASSEMBLY
2007 BEARCAT WIDE TRACK TURBO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 7999-294 | SEAT, PASS-MFG ASSY-07 BCWT | 1 | $453.95 | |
| 2 | 2706-921 | FOAM,SEAT-PASS-'06 2 UP (70-75 ILD) | 1 | $115.95 | |
| 3 | 2706-969 | COVER, PASS SEAT-BCWT | 1 | $196.95 | |
| 5 | 2606-942 | WIRE, SEAT (8.0)-BENT | 1 | $2.47 | |
| 6 | 4606-123 | TOP, SEAT BASE, REAR-06 BCWT | 1 | $41.95 | |
| 7 | 4606-634 | SEATBASE, REAR-07 BCWT | 1 | $150.95 | |
| 8 | 0623-783 | SCREW, ST-PAN HD-12 X 1 1/2-TYPE A Z&Y | 1 | $0.95 | |
| 9 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 10 | 3706-527 | BACKREST - MFG ASSY (07 BCWT) | 1 | $596.95 | |
| 11 | 3706-363 | COVER, BACKREST-07 BCWT | 1 | $121.95 | |
| 12 | 0716-705 | FOAM,BACKREST(IDL N/A),44@1.8 | 1 | $85.95 | |
| 13 | 3706-550 | BACKREST, RH-PTD BLK-07 BCWT | 1 | $156.95 | |
| 13 | 3706-551 | BACKREST, LH-PTD BLK-07 BCWT | 1 | $160.95 | |
| 14 | 3706-546 | SUPPORT, CROSS-BACKREST-PTD BLK | 1 | $13.95 | |
| 15 | 8020-045 | SCREW,CAP-HFH 1/4-20 X 1.500 Z&Y | 1 | $0.95 | |
| 16 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 17 | 1606-238 | DEFLECTOR,WIND-RH | 1 | $56.95 | |
| 17 | 1606-239 | DEFLECTOR,WIND-LH | 1 | $56.95 | |
| 18 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 20 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 21 | 8002-045 | SCREW, CAP-HH 1/4-20 X 1.50 G5 Z&Y | 1 | $0.95 | |
| 22 | 0609-708 | TAILLIGHT - ASSY W/HARNESS | 1 | $90.95 | |
| 23 | 0109-460 | BULB,STOP/TAILLAMP | 1 | $2.06 | |
| 24 | 0609-229 | LENS,TAILLIGHT | 1 | $32.95 | |
| 25 | 1623-148 | SCREW,MACH-TSBH 10-32X2.125 GR8 Z&Y | 1 | $12.35 | |
| 26 | 0123-709 | NUT,HEX 10-32 W/LOCKWASHER | 1 | $0.40 | |
| 27 | 3706-091 | GUARD, TAILLIGHT-PTD BLK-BCWT | 1 | $18.95 | |
| 28 | 3706-525 | RACK, MRP,BCWT-PTD BLK | 1 | $291.95 | |
| 29 | 2706-959 | RACK, SIDE-PAINTED | 1 | $51.95 | |
| 30 | 0441-592 | BUSHING,RACK FRAME | 1 | $4.26 | |
| 31 | 2406-014 | BUSHING,RACK FRAME | 1 | $2.47 | |
| 32 | 4606-113 | PLUG, RACK | 1 | $2.95 | |
| 33 | 4606-377 | MAT, RACK-RUBBER-HT | 1 | $44.95 | |
| 34 | 0623-831 | CAP, SPINDLE (RDR-10-1420) | 1 | $1.50 | |
| 35 | 0541-447 | PINS,SPEEDRACK-SS-ASSY | 1 | $16.49 | |
| 36 | 8047-486 | NUT,HEX FLG-NY LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 37 | 0411-965 | DECAL,"SPEEDRACK"(MRP) | 1 | $3.30 | |
| 38 | 1623-422 | PIN/CAP-BCWT | 1 | $23.39 |
