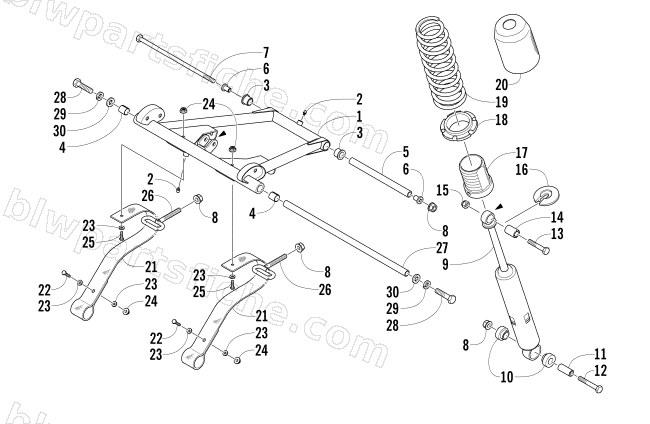

2007 Arctic Cat BEARCAT WIDE TRACK TURBO — REAR SUSPENSION FRONT ARM ASSEMBLY
2007 BEARCAT WIDE TRACK TURBO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1704-269 | ARM, FRT-FABR | 1 | $341.95 | |
| 2 | 1623-010 | FIT,GREASE-1/4-28 UNF-SELF THREAD | 1 | $1.92 | |
| 3 | 0104-386 | BUSHING,REAR ARM | 1 | $4.26 | |
| 4 | 0603-083 | BEARING,GARLOCK 10DU12 | 1 | $8.21 | |
| 5 | 1604-974 | TUBE,AXLE-REAR ARM | 1 | $22.01 | |
| 6 | 0603-061 | AXLE,SERRATED | 1 | $1.92 | |
| 7 | 1623-064 | SCREW, CAP-HH 3/8-16X14.5 GR5 ZY | 1 | $30.95 | |
| 8 | 8047-486 | NUT,HEX FLG-NY LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 9 | 1604-369 | SHOCK,FRONT ARM | 1 | $157.95 | |
| 10 | 1604-384 | BUSHING, EYELET - ARVIN SHOCK | 1 | $3.99 | |
| 11 | 1604-329 | AXLE,SHOCK PIVOT-98EXT | 1 | $39.95 | |
| 12 | 8020-228 | SCREW,CAP-HFH 3/8-16 X 2.25 G5 Z&Y | 1 | $2.75 | |
| 13 | 8020-226 | SCREW,CAP-HFH 3/8-16 X 1.75 Z&Y | 1 | $2.95 | |
| 14 | 0603-030 | AXLE,SERRATED | 1 | $1.37 | |
| 15 | 8041-486 | NUT,HEX THIN LOCK-NYL 3/8-16 Z&Y | 1 | $0.40 | |
| 16 | 1603-889 | RETAINER, SPRING | 1 | $12.35 | |
| 17 | 0603-147 | SLEEVE,THREADED-SHOCK | 1 | $60.95 | |
| 18 | 0603-259 | NUT,RETAINER-SPRING | 1 | $5.65 | |
| 19 | 1703-072 | SPRING, COMP-140-PAINTED BLACK | 1 | $93.95 | |
| 20 | 0604-590 | COVER,SUSPENSION SPRING (LONG) | 1 | $27.95 | |
| 21 | 2604-832 | STRAP, LIMITER-FRONT | 1 | $32.95 | |
| 22 | 8002-043 | SCREW,CAP-HH 1/4-20 X1.125 G5 Z&Y | 1 | $0.68 | |
| 23 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 24 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 25 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 26 | 0704-256 | ADJUSTER,FRT.ARM-PTD BLK | 1 | $16.49 | |
| 27 | 0604-948 | AXLE,INNER .625 X 20.81 | 1 | $81.95 | |
| 28 | 8002-224 | SCREW,CAP-HH 3/8-16 X1.25 G5 Z&Y | 1 | $1.09 | |
| 29 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 30 | 0623-044 | WSHR,FLAT HARD .375 X.875 | 1 | $4.68 |
