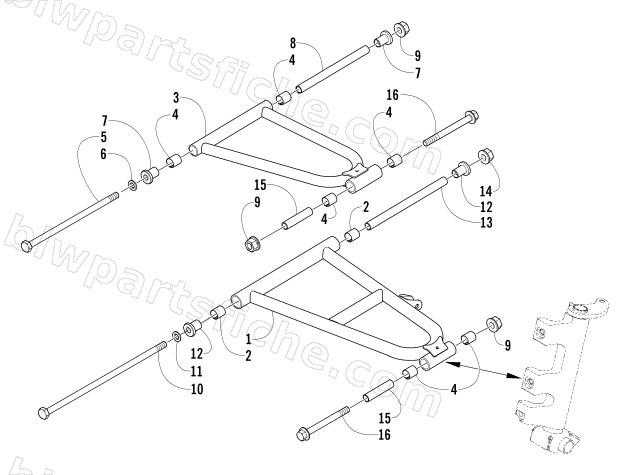

A-ARM ASSEMBLY
2007 BEARCAT WIDE TRACK
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0703-956 | ARM, LWR RH FAB-43"-PLATINUM | 1 | $156.95 | |
| 1 | 0703-957 | ARM, LWR-LH FAB-43"-PLATINUM | 1 | $173.95 | |
| 2 | 0603-158 | BEARING,GARLOCK 12DU12 | 1 | $8.21 | |
| 3 | 0703-949 | A-ARM, UPR-FAB-43"-PLATINUM | 1 | $161.95 | |
| 4 | 0603-083 | BEARING,GARLOCK 10DU12 | 1 | $8.21 | |
| 5 | 0623-509 | SCREW,CAP-HH 3/8-16X9.455 GD 8 | 1 | $32.95 | |
| 6 | 0623-664 | WASHER,FLAT 1.00X.390X.164 Z&Y | 1 | $1.23 | |
| 7 | 1603-244 | AXLE,PWD METAL(0603-061) | 1 | $2.06 | |
| 8 | 0603-692 | TUBE,AXLE-UPPER ARM-PIVOT | 1 | $17.87 | |
| 9 | 8047-486 | NUT,HEX FLG-NY LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 11 | 0623-663 | WASHER,FLAT 1.00X.453X.164 Z&Y | 1 | $3.57 | |
| 12 | 1603-397 | AXLE,NON-SERRATED-LOWER ARM PIVOT | 1 | $3.02 | |
| 13 | 0603-693 | TUBE,AXLE-LOWER PIVOT | 1 | $22.01 | |
| 14 | 8047-546 | NUT,HEX FLG-NY LOCK 7/16-14 GR F Z&Y | 1 | $1.23 | |
| 15 | 0603-830 | AXLE,SPINDLE MTG.-STEEL (2.688") | 1 | $39.95 | |
| 16 | 8026-234 | SCREW,CAP-HFH 3/8-16 X 4 GR8 Z&Y | 1 | $3.85 |
