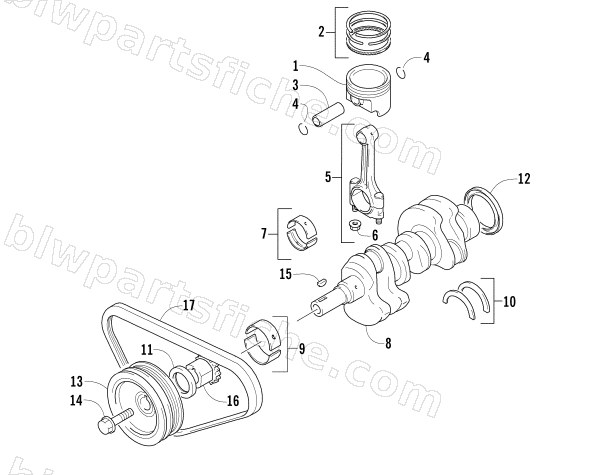

CRANKSHAFT ASSEMBLY
2007 BEARCAT WIDE TRACK
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3006-946 | PISTON,STD-MARK 1 '05 660 L/C | 1 | $180.95 | |
| 1 | 3006-947 | PISTON,STD-MARK 2 '05 660 L/C | 1 | $153.95 | |
| 1 | 3006-945 | PISTON,0.50 '05 660 L/C | 1 | $146.95 | |
| 2 | 3006-948 | RING SET,PISTON STD | 1 | $120.95 | |
| 2 | 3006-949 | RING SET,PISTON-0S:0.50 '05 660 L/C | 1 | $75.79 | |
| 3 | 3006-148 | PIN,PISTON '02 660 L/C | 1 | $44.95 | |
| 4 | 3006-127 | CIRCLIP,PISTON PIN '02 660 L/C | 1 | $6.95 | |
| 5 | 3006-957 | CONNROD ASSY | 1 | $262.95 | |
| 6 | 3006-110 | NUT,M8X0.75X7.5 '02 660 L/C | 1 | $4.95 | |
| 7 | 3006-950 | BEARING,CONNROD | 1 | $29.95 | |
| 8 | 3006-151 | CRANKSHAFT, '02 660 L/C | 1 | $2,397.95 | |
| 9 | 3007-554 | BEARING SET,CRANKSHAFT(STD) | 1 | $50.95 | |
| 9 | 3007-564 | BEARING SET,CRANKSHAFT(STD) | 1 | $53.95 | |
| 9 | 3006-865 | BEARING SET,CRANKSHAFT(STD)04 660 TURBO | 1 | $53.95 | |
| 9 | 3006-866 | BEARING SET,CRANKSHAFT(STD)04 660 TURBO | 1 | $51.95 | |
| 9 | 3006-862 | BEARING SET,CRANKSHAFT(STD) | 1 | $59.95 | |
| 10 | 3006-157 | METAL SET,CRANK THRUST '02 660 L/C | 1 | $39.95 | |
| 10 | 3006-299 | BEARING SET,CRANK THRUST '02 660 L/C | 1 | $41.95 | |
| 11 | 0693-562 | OIL SEAL, M35X47X6 | 1 | $27.95 | |
| 12 | 3006-124 | SEAL,OIL-78X99X8 '02 660 L/C | 1 | $149.95 | |
| 13 | 3006-158 | PULLEY,CRANKSHAFT '02 660 L/C | 1 | $379.95 | |
| 14 | 3006-159 | BOLT,CRANK PULLEY '02 660 L/C | 1 | $26.95 | |
| 15 | 3004-540 | KEY,WOODRUFF,M4 | 1 | $6.34 | |
| 16 | 3006-765 | SPROCKET,CRANKSHAFT-TIMING | 1 | $172.95 | |
| 17 | 3006-295 | BELT(4PK810) '02 660 L/C | 1 | $164.95 |
