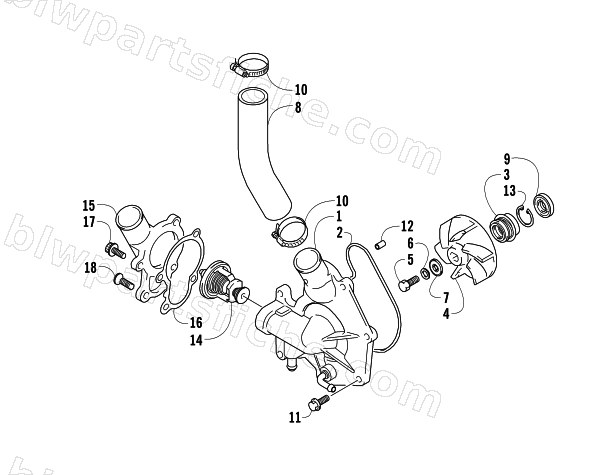

2007 Arctic Cat CROSSFIRE 1000 EFI SNO PRO — WATER PUMP AND THERMOSTAT
2007 CROSSFIRE 1000 EFI SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3007-296 | CASE,WATER PUMP | 1 | $275.95 | |
| 2 | 3007-297 | O RING,WATER PUMP CASE | 1 | $43.95 | |
| 3 | 3007-476 | SEAL,MECHANICAL WATER PUMP | 1 | $49.95 | |
| 4 | 3007-299 | IMPELLER,WATER PUMP | 1 | $54.95 | |
| 5 | 3003-426 | BOLT, 6 X 13 YEL CHROM. | 1 | $2.75 | |
| 6 | 3003-431 | WASHER,6MM | 1 | $3.44 | |
| 7 | 3007-300 | GASKET (6X17X2.2) | 1 | $27.95 | |
| 8 | 3007-301 | HOSE,WATER INLET | 1 | $45.95 | |
| 9 | 3007-302 | SEAL,OIL (12X25X7) | 1 | $33.95 | |
| 10 | 3004-786 | CLAMP,M38 | 1 | $27.95 | |
| 11 | 3007-409 | BOLT | 1 | $3.16 | |
| 12 | 3006-321 | PIN,5X10 '02 440 SNO PRO | 1 | $10.95 | |
| 13 | 3007-303 | CIRCLIP | 1 | $10.97 | |
| 14 | 3007-041 | THERMOSTAT,WATER | 1 | $101.95 | |
| 15 | 3007-304 | CAP,THERMOSTAT | 1 | $73.95 | |
| 16 | 3007-543 | GASKET,THERMOSTAT CAP | 1 | $20.63 | |
| 17 | 3007-446 | BOLT,THERMOSTAT CAP | 1 | $3.44 | |
| 18 | 3007-306 | BOLT,THERMOSTAT CAP (6X18.4) | 1 | $3.16 |
