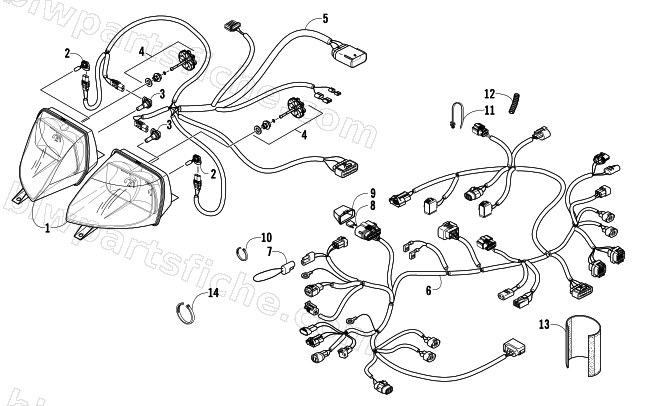

2007 Arctic Cat F1000 EFI LXR — HEADLIGHT AND WIRING ASSEMBLIES
2007 F1000 EFI LXR
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0609-780 | HEADLIGHT,RH-ASSY | 1 | $251.95 | |
| 1 | 0609-781 | HEADLIGHT,LH-ASSY | 1 | $243.95 | |
| 2 | 0609-783 | BULB,LOW BEAM | 1 | $50.95 | |
| 3 | 0609-782 | BULB,HIGH BEAM | 1 | $49.95 | |
| 4 | 0609-779 | ADJUSTER,HEADLIGHT-ASSY | 1 | $41.95 | |
| 5 | 1686-338 | HARNESS,CONSOLE-2STRK LX | 1 | $220.95 | |
| 6 | 1686-361 | HARNESS,MAIN-F 1OOO LXR | 1 | $960.95 | |
| 7 | 0486-164 | TETHER,REAR ACCESSORY CONNECTOR | 1 | $12.35 | |
| 8 | 0430-098 | FUSE,MINI-20A | 1 | $2.95 | |
| 10 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 11 | 0623-677 | CABLE TIE,PUSH MOUNT-X MAS CLIP | 1 | $1.09 | |
| 12 | 0619-776 | CONDUIT,FLEXIBLE-.62 ID-CTL 5' | 1 | $13.73 | |
| 13 | 3706-761 | WRAP,WIRE HARNESS | 1 | $13.73 | |
| 14 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 |
