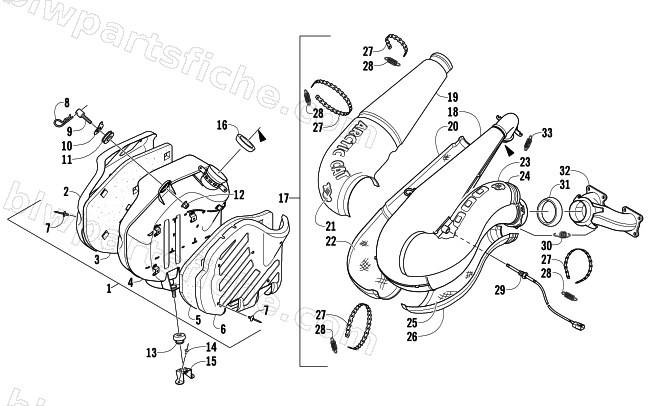

EXHAUST ASSEMBLY
2007 F1000 EFI SNO PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1712-461 | RESONATOR,EXHAUST-ASSY(1000) | 1 | $1,043.95 | |
| 2 | 2612-064 | COVER,RESONATOR-EXTERNAL-RH | 1 | $90.95 | |
| 3 | 2612-062 | PACKING,RESONATOR-EXTERNAL RH | 1 | $16.49 | |
| 4 | 1712-258 | RESONATOR,EXHAUST-PTD BLK (1000) | 1 | $648.95 | |
| 5 | 2612-063 | PACKING,RESONATOR-EXTERNAL LH | 1 | $17.87 | |
| 6 | 2612-065 | COVER,RESONATOR-EXTERNAL-LH | 1 | $90.95 | |
| 7 | 8061-682 | RIVET,BLIND-LF SD62BSLF ZINC | 1 | $0.95 | |
| 8 | 1623-379 | CLIP,HAIRPIN-5/8 TO 3/4 | 1 | $2.88 | |
| 9 | 2612-247 | PIN,MTG-RES/CHASSIS-1.25 | 1 | $16.49 | |
| 10 | 1612-927 | WASHER,RESONATOR MTG W/TAB | 1 | $15.11 | |
| 11 | 1623-375 | GROMMET,RUBBER-3/4 ID x1 5/8OD x1/4 GRV | 1 | $5.51 | |
| 12 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 13 | 1612-873 | GROMMET,RUBBER-RESONATOR MOUNT | 1 | $4.26 | |
| 14 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 15 | 2612-024 | BRKT,MTG-LWR RES/CHASSIS | 1 | $12.35 | |
| 16 | 0612-993 | GASKET,EXHAUST - TAIL PIPE (99-700) | 1 | $29.95 | |
| 17 | 1712-278 | CHAMBER,EXP-FABR | 1 | $1,043.95 | |
| 18 | 1712-279 | CHAMBER,EXP-PTD BLK | 1 | $594.95 | |
| 19 | 2612-048 | COVER,EXP CHAMBER-UPR RR | 1 | $128.95 | |
| 20 | 2612-049 | COVER,EXP CHAMBER-LWR RR | 1 | $128.95 | |
| 21 | 2612-054 | PACKING,EXP CHAMBER-UPR | 1 | $74.95 | |
| 22 | 2612-055 | PACKING,EXP CHAMBER-LWR | 1 | $29.95 | |
| 23 | 2612-052 | PACKING,EXP CHAMBER-UPR | 1 | $15.11 | |
| 24 | 2612-050 | COVER,EXP CHAMBER-UPR FRT | 1 | $117.95 | |
| 25 | 2612-053 | PACKING,EXP CHAMBER-LWR | 1 | $37.95 | |
| 26 | 2612-051 | COVER,EXP CHAMBER-LWR FRT | 1 | $117.95 | |
| 27 | 0624-552 | TIE, PERFORATED BAND-5FT | 1 | $20.63 | |
| 27 | 0624-541 | TIE,PERFORATED BAND-IT( 25' ) | 1 | $110.95 | |
| 28 | 1612-178 | SPRING, EXHAUST STRAP | 1 | $3.85 | |
| 29 | 0630-229 | SENSOR,EXHAUST TEMP-1/4" DIA | 1 | $220.95 | |
| 30 | 2612-399 | SPRING,EXTENSION | 1 | $3.71 | |
| 31 | 2612-059 | GASKET, EXHAUST - HEADPIPE | 1 | $30.95 | |
| 32 | 1712-214 | MANIFOLD, EXHAUST-MACH | 1 | $291.95 | |
| 33 | 0612-471 | SPRING,EXHAUST | 1 | $12.35 |
