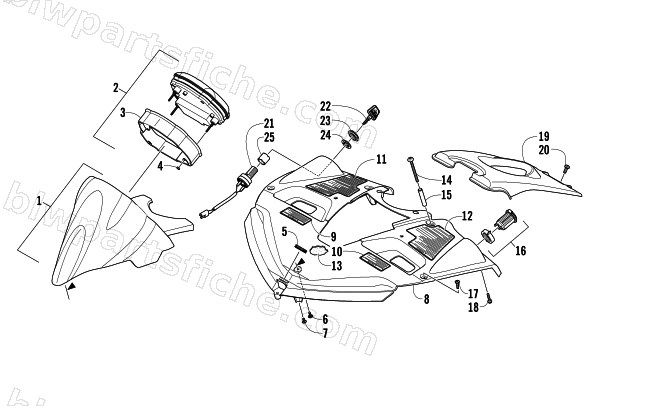

CONSOLE ASSEMBLY
2007 F1000 EFI
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 0620-339 | SPEEDO/TACH-DIGITAL-07 F SERIES ACT-R | 1 | $663.95 | |
| 3 | 0620-281 | BRKT,RETAINING-SPEEDO/TACH | 1 | $52.95 | |
| 4 | 0620-280 | NUT,W/WASHER | 1 | $13.73 | |
| 5 | 4606-274 | GROMMET,FRONT-RUBBER | 1 | $13.73 | |
| 6 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 7 | 1623-661 | SCREW,PT THD-TSTRH K60-2.69X16MM RIE BLK | 1 | $2.33 | |
| 8 | 2718-065 | BASE,CONSOLE-BLK W/ DECALS | 1 | $144.95 | |
| 9 | 7611-575 | DECAL,CAUTION-ENGLISH | 1 | $15.11 | |
| 10 | 7611-574 | DECAL,CAUTION-FRENCH | 1 | $15.11 | |
| 11 | 7611-428 | DECAL,WARNING-FRENCH | 1 | $16.49 | |
| 12 | 7611-427 | DECAL,WARNING-ENGLISH | 1 | $16.49 | |
| 13 | 0717-199 | KIT,CONSOLE FOAM-SERV PARTS | 1 | $57.95 | |
| 14 | 1623-669 | SCREW,SHOULDER - TSTRH M6X 1.0 X 80 MM | 1 | $4.26 | |
| 15 | 1623-591 | SPACER,.375" OD X.26" ID X 56MM | 1 | $29.95 | |
| 16 | 0641-897 | OUTLET, ACCESSORY - 12V DC | 1 | $23.39 | |
| 17 | 1623-618 | SCREW,PT THD-TSPNH K60-2.69X25MM RIE BLK | 1 | $6.06 | |
| 18 | 0623-785 | SCREW,SELF TAP-HWH #10-16 X 1 TYPE B Z&Y | 1 | $0.68 | |
| 19 | 3706-012 | CLOSE-OFF,HANDLEBAR-PTD MATTE BLK | 1 | $110.95 | |
| 20 | 0423-396 | SCREW,SELF TAP-TSPH M6-1.0X15 | 1 | $1.09 | |
| 21 | 0609-728 | SWITCH,IGNITION-NORM OPEN (LOW) | 1 | $54.95 | |
| 23 | 0609-113 | NUT,RETAINING 13/16-20 BLACK PLASTIC | 1 | $1.50 | |
| 24 | 0123-899 | WASHER,IGNITION | 1 | $0.95 |
