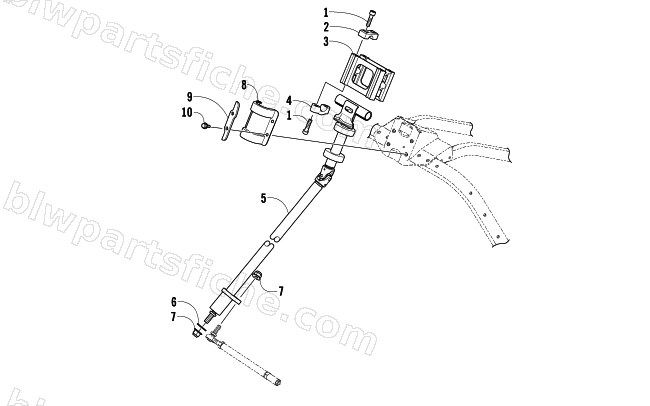

2007 Arctic Cat F1000 EFI — STEERING POST ASSEMBLY
2007 F1000 EFI
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0623-872 | SCREW,CAP-HSH-M8X1.25X30 GR 12.9 BLK&Z | 1 | $2.69 | |
| 2 | 0705-355 | CAP,STEERING ADJUSTER-TOP | 1 | $19.25 | |
| 3 | 0605-884 | RISER,3.0 HANDLEBAR-MACH | 1 | $70.95 | |
| 4 | 0605-676 | CAP,STEERING-(INVESTMENT CAST) | 1 | $37.95 | |
| 5 | 1705-196 | R/B 1705-250 | 1 | $260.95 | |
| 6 | 8050-282 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.95 | |
| 7 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 8 | 1705-087 | BRKT, BEARING-UPPER-PTD | 1 | $29.95 | |
| 9 | 1705-201 | PLATE,BEARING BRACKET-PTD BLK | 1 | $6.75 | |
| 10 | 8408-617 | SCREW,CAP-HFH M6X1.0X16 CL8.8 Z&Y W/2353 | 1 | $1.50 |
