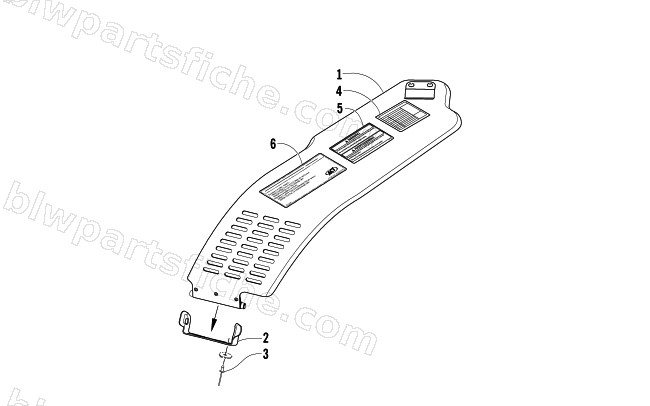

2007 Arctic Cat F5 EFI — BELT GUARD ASSEMBLY
2007 F5 EFI
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1707-465 | GUARD,CLUTCH-KIT | 1 | $102.95 | |
| 2 | 0607-836 | BRKT,MTG-CLUTCH GUARD/BELLYPAN-FORMED | 1 | $56.95 | |
| 3 | 8061-506 | RIVET,BLIND-LF SS54 BLACK | 1 | $0.95 | |
| 4 | 7611-813 | DECAL,EFI DIAGNOSTIC CODES-07 | 1 | $3.16 | |
| 5 | 1611-565 | DECAL,WARNING-GUARD | 1 | $1.92 | |
| 6 | 7611-802 | DECAL,CLUTCHING-2007 F5 | 1 | $29.95 |
