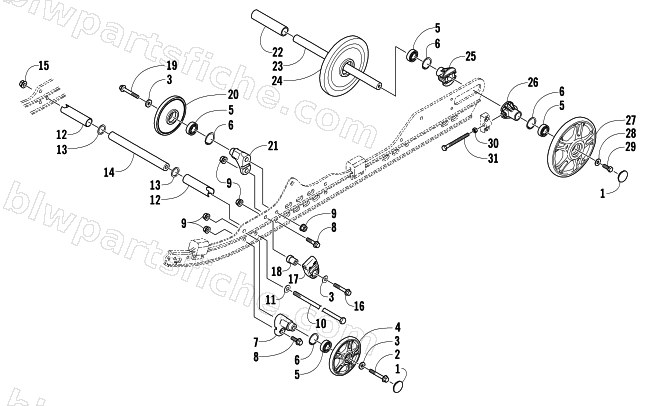

IDLER WHEEL ASSEMBLY
2007 F6 EFI LXR
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1604-952 | CAP,IDL WHL-BLACK | 1 | $13.73 | |
| 2 | 8020-230 | SCREW,CAP-HFH 3/8-16 X 2.75 Z&Y | 1 | $3.44 | |
| 3 | 8050-282 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.95 | |
| 4 | 3604-043 | WHEEL,IDL-5.63 W.787"ID PLATINUM | 1 | $53.95 | |
| 4 | 3604-047 | WHEEL,IDL-5.63 W.787"ID PRL CAT GRN | 1 | $53.95 | |
| 4 | 3604-048 | WHEEL,IDL-5.63 W.787"ID ORN | 1 | $53.95 | |
| 5 | 3604-033 | BEARING,WHL-NSK CHINA 6004-W/ENS GREASE | 1 | $20.63 | |
| 6 | 0623-946 | RING,INTERNAL RETAINING-#165 | 1 | $2.06 | |
| 7 | 3604-207 | BLOCK 1.904",MTG-IDLER WHEEL-DIE CAST | 1 | $29.95 | |
| 8 | 8020-224 | SCREW,CAP-HFH 3/8-16 X 1.250 Z&Y | 1 | $13.73 | |
| 9 | 8047-486 | NUT,HEX FLG-NY LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 10 | 1623-037 | SCREW, CAP-HH 3/8-16X10 GD 8 Z&Y | 1 | $6.47 | |
| 11 | 8050-272 | WASHER,FLAT- 3/8 X .734 X .063 Z&Y | 1 | $0.26 | |
| 12 | 3604-083 | SPACER,FRONT ARM SHOCK | 1 | $12.35 | |
| 13 | 0623-912 | WASHER,FLAT-.890 X 1.19 X .060 Z&Y | 1 | $0.95 | |
| 14 | 1604-792 | AXLE, STEEL-7/8 X 3/8 X 8.750 ZY | 1 | $58.95 | |
| 15 | 8047-490 | NUT,HEX FLG-NY LOCK 3/8-16 GR G Z&Y | 1 | $0.95 | |
| 16 | 8020-227 | SCREW,CAP-HFH 3/8-16 X 2.00 Z&Y | 1 | $2.47 | |
| 17 | 2604-516 | SLIDE, SPRING-TALL | 1 | $6.06 | |
| 18 | 3604-204 | BLOCK,SLIDE-SPRING-PM-1.20" | 1 | $13.73 | |
| 19 | 8020-232 | SCREW,CAP-HFH 3/8-16 X 3.25 Z&Y | 1 | $5.65 | |
| 20 | 3604-039 | WHEEL,IDL-5.63 W.787"ID BLK (NO SPOKE) | 1 | $53.95 | |
| 21 | 3604-004 | BLOCK,MTG-IDLER WHEEL(DIE CAST) | 1 | $29.95 | |
| 22 | 1604-810 | SPACER,REAR WHEEL-CTR | 1 | $32.95 | |
| 23 | 2604-874 | AXLE,REAR WHEEL-STEEL 12.622" | 1 | $83.95 | |
| 24 | 3604-060 | WHEEL,IDL-7.12 W.787"ID BLK(NO SPOKE) | 1 | $53.95 | |
| 25 | 2604-881 | BUSHING,ADJUSTER-4 WHL | 1 | $5.51 | |
| 26 | 1704-490 | BUSHING,ADJUSTER-3 WHL-SHORT-MACH | 1 | $12.35 | |
| 27 | 3604-062 | WHEEL,IDL-7.12 W.787"ID PLATINUM | 1 | $53.95 | |
| 27 | 3604-066 | WHEEL,IDL-7.12 W.787"ID PRL CAT GRN | 1 | $53.95 | |
| 27 | 3604-065 | WHEEL,IDL-7.12 W.787"ID ORN | 1 | $53.95 | |
| 28 | 0623-664 | WASHER,FLAT 1.00X.390X.164 Z&Y | 1 | $1.23 | |
| 29 | 1623-545 | SCREW,CAP-HH 3/8-16X 1.125 W/204 (RED) | 1 | $1.50 | |
| 30 | 8042-486 | NUT,3/8-16 HEX-REG-GR5 Z&Y | 1 | $0.26 | |
| 31 | 0124-310 | HHCS 3/8-16X4.0 THREADED GR5 Z&Y | 1 | $2.47 |
