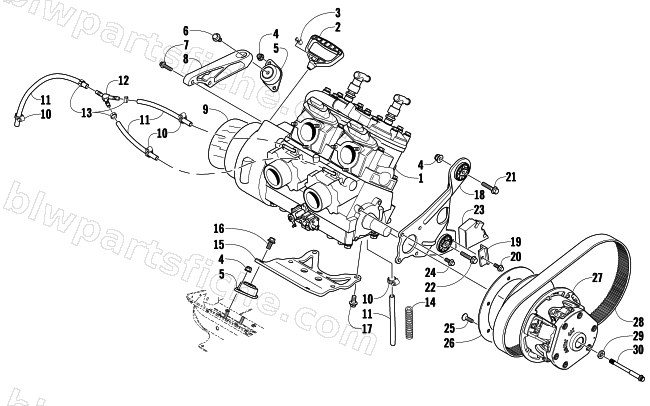

2007 Arctic Cat F6 EFI — ENGINE AND RELATED PARTS
2007 F6 EFI
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0662-491 | ENGINE,L/C-600 DEID (W/O EFI COMP) | 1 | $3,943.95 | |
| 2 | 0636-363 | HANDLE,RECOIL-LARGE | 1 | $15.11 | |
| 3 | 0606-885 | CAP,RECOIL HANDLE | 1 | $1.37 | |
| 4 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 5 | 0608-496 | MOUNT,ENGINE | 1 | $49.95 | |
| 6 | 8409-020 | SCREW,CAP-HFH M10X1.25X20 CL10.9 Z&Y | 1 | $0.54 | |
| 7 | 8408-831 | SCREW,CAP-HFH M8X1.25X30 CL8.8 W/2353 | 1 | $0.95 | |
| 8 | 0708-478 | MOUNT,ENG-MAG,500AA/600-MACH | 1 | $93.95 | |
| 9 | 1670-328 | FOIL, PROTECTIVE-RECOIL COVER-DIE CUT | 1 | $16.49 | |
| 10 | 0623-373 | CLAMP,HOSE #4 {6202} | 1 | $2.88 | |
| 11 | 0610-076 | HOSE, WATER-10 FT {0619-124} | 1 | $65.95 | |
| 12 | 1670-596 | FITTING,Y-5/16 | 1 | $3.44 | |
| 13 | 0610-581 | CLAMP, HOSE-14.5MM TO 17.0MM | 1 | $2.61 | |
| 14 | 0619-776 | CONDUIT,FLEXIBLE-.62 ID-CTL 5' | 1 | $13.73 | |
| 15 | 0608-577 | PLATE,ENG-FRONT-MACH | 1 | $185.95 | |
| 16 | 8409-016 | SCREW,CAP-HFH M10X1.25X16 CL10.9 Z&Y | 1 | $1.50 | |
| 17 | 8409-021 | SCREW,CAP-HFH M10X1.25X20 CL10.9 W/2353 | 1 | $1.64 | |
| 18 | 0708-484 | BRKT,MTG,ENG-PTO 500/600/800-ASSY | 1 | $275.95 | |
| 19 | 0608-512 | BUMPER,TORQUE-MACHINED | 1 | $13.73 | |
| 20 | 0623-765 | SCREW,SELF TAP-HWH 5/16-18X.625 TT Z&Y | 1 | $1.23 | |
| 21 | 8408-845 | SCREW,CAP-HFH M8X1.25X45 CL8.8 Z&Y | 1 | $1.09 | |
| 22 | 1623-642 | SCREW,CAP-HFH M8X1.25X45 CL8.8 Z&YW/204 | 1 | $2.95 | |
| 23 | 0608-511 | SNUBBER, RUBBER | 1 | $24.77 | |
| 24 | 8408-821 | SCREW,CAP-HFH M8X1.25X20 CL8.8 W/2353 | 1 | $1.09 | |
| 25 | 1623-128 | SCREW,MACH-TSFH 5/16-18X.562 Z&Y | 1 | $2.88 | |
| 26 | 0645-410 | RING,DAMPER - CLUTCH | 1 | $82.95 | |
| 27 | 0746-435 | CLUTCH,DRIVE-UNCAL-8.25 33MM/S | 1 | $696.95 | |
| 28 | 0627-046 | BELT,DRIVE-S-3C-1.448"WX45.998"OC-DC | 1 | $133.95 | |
| 29 | 0623-210 | WASHER, LOCK-1/2" HI-COLLAR | 1 | $0.68 | |
| 30 | 0623-804 | BOLT, CLUTCH-1/2-20X5-1/5-12 PT | 1 | $15.11 |
