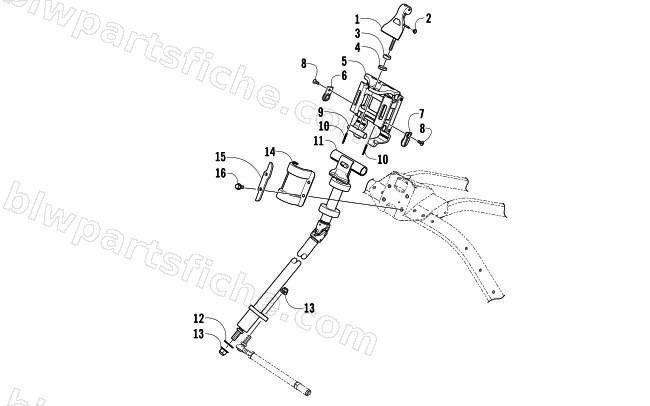

2007 Arctic Cat F8 EFI SNO PRO LIMITED EDITION — STEERING POST ASSEMBLY
2007 F8 EFI SNO PRO LIMITED EDITION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1705-104 | LEVER, CAM -ADJ RISER-ASSY | 1 | $44.95 | |
| 2 | 0605-839 | KNOB, LOCK PIN | 1 | $4.26 | |
| 3 | 0605-837 | WASHER, CAM ADJ RISER | 1 | $3.44 | |
| 4 | 0605-828 | CUP, CAM ADJ RISER | 1 | $4.26 | |
| 5 | 1705-195 | BLOCK,RISER-S/P ASSY | 1 | $224.95 | |
| 6 | 0605-832 | RETAINER, RISER BLOCK-RH | 1 | $82.95 | |
| 7 | 0605-833 | RETAINER, RISER BLOCK-LH | 1 | $54.95 | |
| 8 | 1623-018 | SCREW,SELF TAP-TSFH 10-16X.50 TYPE B | 1 | $0.26 | |
| 9 | 0605-831 | END, LOCK ROD-ADJ RISER | 1 | $34.95 | |
| 10 | 0605-840 | SPRING, BOTTOM CAP(ADJ RISER) | 1 | $32.95 | |
| 11 | 1705-351 | POST,STEERING-PTD BLK (ADJUSTABLE) | 1 | $316.95 | |
| 12 | 8050-282 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.95 | |
| 13 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 14 | 1705-087 | BRKT, BEARING-UPPER-PTD | 1 | $29.95 | |
| 15 | 1705-201 | PLATE,BEARING BRACKET-PTD BLK | 1 | $6.75 | |
| 16 | 8408-617 | SCREW,CAP-HFH M6X1.0X16 CL8.8 Z&Y W/2353 | 1 | $1.50 |
