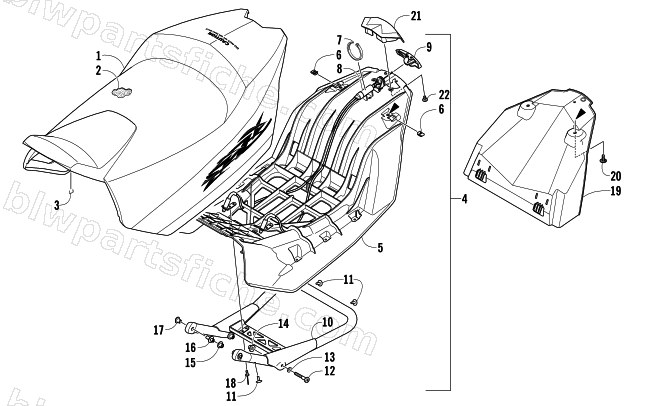

SEAT ASSEMBLY
2007 F8 EFI SNO PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 7999-338 | SEAT,BLK/ORN(ADJUSTABLE)-MFG ASSY | 1 | $967.95 | |
| 0 | 7999-339 | SEAT,BLK/SLV(ADJUSTABLE)-MFG ASSY | 1 | $914.95 | |
| 0 | 7999-337 | SEAT,BLK/GRN(ADJUSTABLE)-MFG ASSY | 1 | $1,058.95 | |
| 1 | 3706-541 | CVER,SEAT W/DECAL-07 ADJ ORN | 1 | $486.95 | |
| 1 | 3706-540 | COVER,SEAT W/DECAL-07 ADJ BLK | 1 | $408.95 | |
| 1 | 3706-542 | COVER,SEAT W/DECAL-07 ADJ GRN | 1 | $450.95 | |
| 2 | 0617-467 | FOAM,SEAT (77-82 ILD) .48@5.4 | 1 | $160.95 | |
| 3 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 4 | 3706-284 | BASE,SEAT-FABR | 1 | $485.95 | |
| 5 | 3606-662 | SEATBASE, PLASTIC | 1 | $103.95 | |
| 6 | 0423-060 | CLIP, TINERMAN -C07508-8A-4 | 1 | $1.95 | |
| 7 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 8 | 4606-337 | CABLE,SEAT ADJUSTER | 1 | $168.95 | |
| 9 | 4606-380 | LEVER,SEAT ADJUSTER CABLE | 1 | $13.73 | |
| 10 | 3706-641 | FRAME,SEAT-MACH | 1 | $185.95 | |
| 11 | 8061-688 | RIVET,BLIND-LF SS66 ZINC | 1 | $0.95 | |
| 12 | 4606-338 | PIN,SLIDE-BOTTOM | 1 | $7.95 | |
| 13 | 1623-658 | SHIM,PIN-BOTTOM | 1 | $0.95 | |
| 14 | 1623-524 | WASHER,SLIDE-BOTTOM | 1 | $2.75 | |
| 15 | 1623-525 | WASHER,SLIDE-TOP | 1 | $2.75 | |
| 16 | 4606-339 | PIN,SLIDE-TOP | 1 | $17.87 | |
| 17 | 1623-542 | NUT,SLIDE-TOP-M8X1.25 | 1 | $22.01 | |
| 18 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 19 | 4606-225 | PANEL,SEATBASE | 1 | $62.95 | |
| 20 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 21 | 4606-345 | HOUSING,CABLE-SEAT ADJUSTER | 1 | $15.11 | |
| 22 | 1623-463 | SCREW,PT THREAD FORMING-K60-2.69X12mm | 1 | $1.78 |
