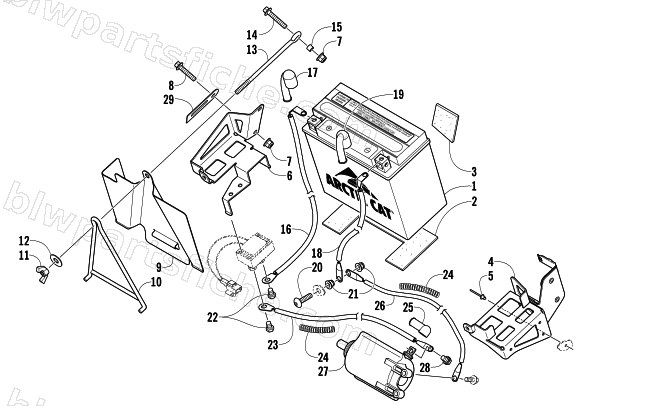

2007 Arctic Cat JAGUAR Z1 1100 EFI — BATTERY AND TRAY ASSEMBLY
2007 JAGUAR Z1 1100 EFI
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0745-406 | BATTERY,SEALED-YTX20-ASSY | 1 | $154.95 | |
| 2 | 0617-526 | PAD,FOAM-BATTERY-BOTTOM | 1 | $5.51 | |
| 3 | 0617-527 | PAD, FOAM-BATTERY-SIDE | 1 | $3.44 | |
| 4 | 0745-267 | TRAY, BATTERY INNER-PTD BLK | 1 | $37.95 | |
| 5 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 6 | 0745-265 | TRAY, BATTERY OUTER-PTD BLK | 1 | $33.95 | |
| 7 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 8 | 8408-630 | SCREW,CAP-HFH M6X1.0X30 CL8.8 Z&Y | 1 | $0.95 | |
| 9 | 0645-468 | SHIELD, HEAT-BTRY | 1 | $29.95 | |
| 10 | 0745-262 | ROD, BATTERY-PTD BLK | 1 | $36.95 | |
| 11 | 1623-430 | WINGNUT, M6X1 | 1 | $2.47 | |
| 12 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 13 | 0745-263 | ROD, BATTERY TOP-PTD BLK | 1 | $13.95 | |
| 14 | 8408-635 | SCREW,CAP-HFH M6X1.0X35 CL8.8 Z&Y | 1 | $0.68 | |
| 15 | 0645-479 | SPACER, BATTERY ROD-6MM | 1 | $7.95 | |
| 16 | 0645-485 | CABLE,BATTERY TO SOLENOID-12" | 1 | $34.95 | |
| 17 | 0645-521 | BOOT,TERMINAL-BATTERY | 1 | $3.85 | |
| 18 | 0645-484 | CABLE,BATTERY-GROUND-12" | 1 | $36.95 | |
| 19 | 0645-520 | BOOT,TERMINAL-BATTERY | 1 | $3.44 | |
| 20 | 8476-830 | SCREW,MACH-TSTRH M8X1.25X30 Z&Y | 1 | $9.59 | |
| 21 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 22 | 1623-450 | BOLT,STARTER RELAY-HH M6X1.0X8 Z&Y | 1 | $1.95 | |
| 23 | 0645-486 | CABLE,SOLENOID TO STARTER-22" | 1 | $33.95 | |
| 25 | 0645-522 | BOOT,TERMINAL-SOLENOID | 1 | $3.95 | |
| 26 | 0645-505 | CABLE,STARTER TO GROUND | 1 | $28.95 | |
| 27 | 3007-219 | MOTOR ASSY,STARTER | 1 | $933.95 | |
| 28 | 1623-451 | BOLT, STARTER MOTOR-HH SEMS M5X0.8X8 Z&Y | 1 | $3.44 | |
| 29 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 |
