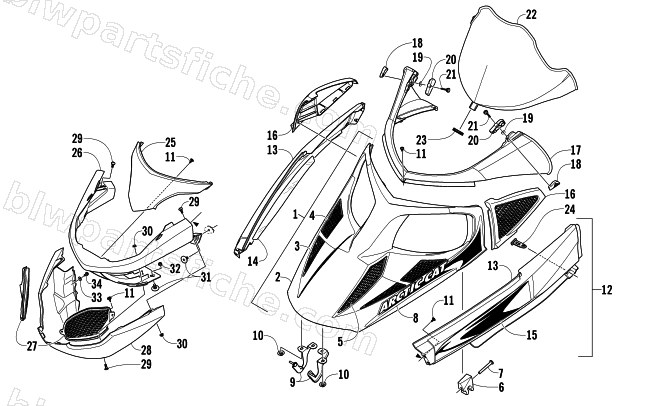

2007 Arctic Cat JAGUAR Z1 1100 EFI — HOOD, WINDSHIELD, AND FRONT BUMPER ASSEMBLY
2007 JAGUAR Z1 1100 EFI
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2718-090 | HOOD LID W/DECALS-S/P ASSY-BLK | 1 | $301.95 | |
| 1 | 2718-091 | HOOD LID W/DECALS-S/P ASSY-RED | 1 | $246.95 | |
| 1 | 2718-089 | HOOD LID W/DECALS-S/P ASSY-GRN | 1 | $235.95 | |
| 2 | 7999-265 | LID,HOOD-BLK-MFG ASSY | 1 | $206.95 | |
| 2 | 7999-264 | LID,HOOD-RED-MFG ASSY | 1 | $213.95 | |
| 2 | 7999-263 | LID,HOOD-GRN-MFG ASSY | 1 | $189.95 | |
| 3 | 4606-698 | VENT,HOOD-OUTER FRONT-RH-MOLD PEWTER | 1 | $20.95 | |
| 3 | 4606-699 | VENT,HOOD-OUTER FRONT-LH-MOLD PEWTER | 1 | $20.95 | |
| 3 | 4606-624 | VENT,HOOD-OUTER FRONT-RH-MOLD BLK | 1 | $20.63 | |
| 3 | 4606-625 | VENT,HOOD-OUTER FRONT-LH-MOLD BLK | 1 | $20.63 | |
| 4 | 4606-700 | VENT,HOOD-OUTER-REAR RH-MOLD PEWTER | 1 | $20.95 | |
| 4 | 4606-701 | VENT,HOOD-OUTER-REAR LH-MOLD PEWTER | 1 | $20.95 | |
| 4 | 4606-640 | VENT,HOOD-OUTER-REAR RH-MOLD BLK | 1 | $20.63 | |
| 4 | 4606-641 | VENT,HOOD-OUTER-REAR LH-MOLD BLK | 1 | $20.63 | |
| 5 | 4606-696 | VENT,HOOD LID-INNER-RH-MOLD PEWTER | 1 | $25.95 | |
| 5 | 4606-697 | VENT,HOOD LID-INNER-LH-MOLD PEWTER | 1 | $25.95 | |
| 5 | 4606-614 | VENT,HOOD LID-INNER-RH-MOLD BLK | 1 | $26.95 | |
| 5 | 4606-615 | VENT,HOOD LID-INNER-LH-MOLD BLK | 1 | $26.95 | |
| 6 | 1623-614 | CLIP,RUBBER-HOOD-HOLDDOWN-RH | 1 | $13.73 | |
| 6 | 1623-615 | CLIP,RUBBER-HOOD-HOLDDOWN-LH | 1 | $13.73 | |
| 7 | 1623-610 | PIN,RETAINING-HOOD | 1 | $22.01 | |
| 8 | 7611-760 | DECAL,HOOD LID-UPR BLK RH | 1 | $16.95 | |
| 8 | 7611-761 | DECAL,HOOD LID-UPR BLK LH | 1 | $16.95 | |
| 8 | 7611-752 | DECAL,HOOD LID-UPR RED RH | 1 | $67.95 | |
| 8 | 7611-753 | DECAL,HOOD LID-UPR RED LH | 1 | $136.95 | |
| 8 | 7611-744 | DECAL,HOOD LID-UPR GRN RH | 1 | $26.95 | |
| 8 | 7611-745 | DECAL,HOOD LID-UPR GRN LH | 1 | $26.95 | |
| 9 | 3706-348 | BRKT,LID HINGE- RH-PTD BLK | 1 | $24.77 | |
| 9 | 3706-347 | BRKT,LID HINGE-LH-PTD BLK | 1 | $24.77 | |
| 10 | 1623-469 | NUT,STAMPED- 0.330 | 1 | $1.23 | |
| 11 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 12 | 3706-848 | SPAR,FRT RH W/DECALS-BLK | 1 | $54.95 | |
| 12 | 3706-849 | SPAR,FRT LH W/DECALS-BLK | 1 | $53.95 | |
| 12 | 3706-850 | SPAR,FRT RH W/DECALS-RED | 1 | $51.95 | |
| 12 | 3706-851 | SPAR,FRT LH W/DECALS-RED | 1 | $51.95 | |
| 12 | 3706-846 | R/B 4606-886 | 1 | $51.95 | |
| 12 | 3706-847 | SPAR,FRT LH W/DECALS-GRN | 1 | $47.95 | |
| 13 | 4606-884 | SPAR,FRONT-RH-MOLD BLK | 1 | $39.95 | |
| 13 | 4606-885 | SPAR,FRONT-LH-MOLD BLK | 1 | $39.95 | |
| 15 | 7611-764 | DECAL,FRT SPAR-BLK RH | 1 | $26.95 | |
| 15 | 7611-765 | DECAL,FRT SPAR-BLK LH | 1 | $26.95 | |
| 15 | 7611-756 | DECAL,FRT SPAR-RED RH | 1 | $171.95 | |
| 15 | 7611-757 | DECAL,FRT SPAR-RED LH | 1 | $26.95 | |
| 15 | 7611-748 | DECAL,FRT SPAR-GRN RH | 1 | $24.95 | |
| 15 | 7611-749 | DECAL,FRT SPAR-GRN LH | 1 | $26.95 | |
| 16 | 5606-924 | BEZEL,INTAKE-RH-BLK ASSY | 1 | $58.95 | |
| 16 | 5606-925 | BEZEL,INTAKE-LH-BLK ASSY | 1 | $58.95 | |
| 16 | 4606-586 | BEZEL,INTAKE-RH-RED-ASSY | 1 | $54.95 | |
| 16 | 4606-587 | BEZEL,INTAKE-LH-RED-ASSY | 1 | $54.95 | |
| 16 | 4606-584 | BEZEL,INTAKE-RH-GRN-ASSY | 1 | $53.95 | |
| 16 | 4606-585 | BEZEL,INTAKE-LH-GRN-ASSY | 1 | $53.95 | |
| 17 | 3606-700 | BASE,WINDSHIELD | 1 | $184.95 | |
| 18 | 4606-782 | LATCH,WINDSHIELD-FIXED-RH | 1 | $27.95 | |
| 18 | 4606-783 | LATCH,WINDSHIELD-FIXED-LH | 1 | $27.95 | |
| 19 | 1623-583 | WASHER,LATCH-WINDSHIELD-RUBBER | 1 | $0.95 | |
| 20 | 4606-392 | PLATE,BACKING-LATCH-RH | 1 | $26.95 | |
| 20 | 4606-393 | PLATE,BACKING-LATCH-LH | 1 | $26.95 | |
| 21 | 1623-647 | SCREW,THUMB-WINDSHIELD | 1 | $17.87 | |
| 22 | 3606-701 | WINDSHIELD,TRAIL PERF | 1 | $104.95 | |
| 23 | 4606-274 | GROMMET,FRONT-RUBBER | 1 | $13.73 | |
| 24 | 4606-926 | STRAP,HOLDDOWN-STORAGE BOX LID | 1 | $4.68 | |
| 25 | 4606-518 | FACIA,BUMPER-UPPER-MOLD BLK | 1 | $37.95 | |
| 25 | 4606-516 | FACIA,BUMPER-UPPER-MOLD RED | 1 | $36.95 | |
| 25 | 4606-519 | FACIA,BUMPER-UPPER-MOLD GRN | 1 | $79.95 | |
| 26 | 4606-512 | BUMPER,FRONT CLIP-MOLD BLK | 1 | $141.95 | |
| 27 | 4606-694 | VENT,BUMPER-RH-MOLD PEWTER | 1 | $25.95 | |
| 27 | 4606-695 | VENT,BUMPER-LH-MOLD PEWTER | 1 | $26.95 | |
| 27 | 4606-604 | VENT,BUMPER-RH-MOLD BLK | 1 | $26.95 | |
| 27 | 4606-605 | VENT,BUMPER-LH-MOLD BLK | 1 | $26.95 | |
| 28 | 5606-462 | FACIA,BUMPER-LWR-MOLD BLK | 1 | $65.95 | |
| 28 | 4606-515 | FACIA,BUMPER-LOWER-MOLD RED | 1 | $58.95 | |
| 28 | 5606-463 | R/B 5606-462 | 1 | $56.95 | |
| 29 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 30 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 31 | 0423-130 | SCREW,FUEL TANK | 1 | $5.65 | |
| 32 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 33 | 8053-242 | WASHER,LOCK-5/16 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 34 | 0623-966 | SCREW,SELF TAP-HWH M6 X 12 Z (TRI LOB) | 1 | $1.09 |
