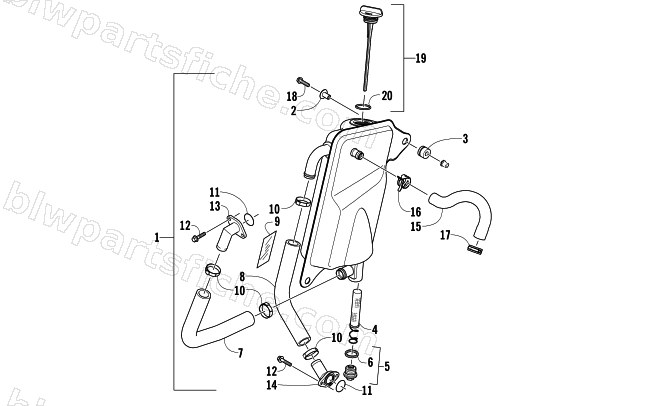

2007 Arctic Cat JAGUAR Z1 1100 EFI — OIL TANK ASSEMBLY
2007 JAGUAR Z1 1100 EFI
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-770 | TANK,OIL ASSY | 1 | $530.95 | |
| 2 | 1623-573 | BUSHING,FLANGED-OIL TANK | 1 | $15.11 | |
| 3 | 1670-729 | GROMMET, OIL TANK | 1 | $1.37 | |
| 4 | 1670-983 | SCREEN,OIL TANK | 1 | $29.95 | |
| 5 | 1670-914 | PLUG,DRAIN-OIL TANK | 1 | $23.39 | |
| 7 | 0610-641 | HOSE, OIL FEED | 1 | $62.95 | |
| 8 | 0610-642 | HOSE, OIL RETURN | 1 | $50.95 | |
| 9 | 0706-548 | FOIL,3 X 12(0619-728) | 1 | $6.06 | |
| 10 | 1623-515 | CLAMP,HOSE-29.9MM TO 33.1MM | 1 | $4.40 | |
| 11 | 0648-441 | O-RING,ADJUSTER SHEAVE (2-121) | 1 | $0.54 | |
| 12 | 8408-616 | SCREW,CAP-HFH M6X1.0X16 CL8.8 Z&Y | 1 | $0.54 | |
| 13 | 1670-727 | FITTING, OIL SUPPLY-ENGINE | 1 | $85.95 | |
| 14 | 1670-726 | FITTING, OIL RETURN-ENGINE | 1 | $85.95 | |
| 15 | 0610-664 | HOSE, BREATHER-OIL TANK | 1 | $33.95 | |
| 16 | 1623-287 | CLAMP,HOSE-SPRING (12W X 24) | 1 | $3.44 | |
| 17 | 1623-289 | CLAMP,HOSE-SPRING (12W X 26) | 1 | $3.57 | |
| 18 | 8408-630 | SCREW,CAP-HFH M6X1.0X30 CL8.8 Z&Y | 1 | $0.95 | |
| 19 | 2670-136 | CAP,OIL TANK-W/ O-RING | 1 | $29.95 | |
| 20 | 1670-823 | O-RING,OIL CAP | 1 | $0.40 |
