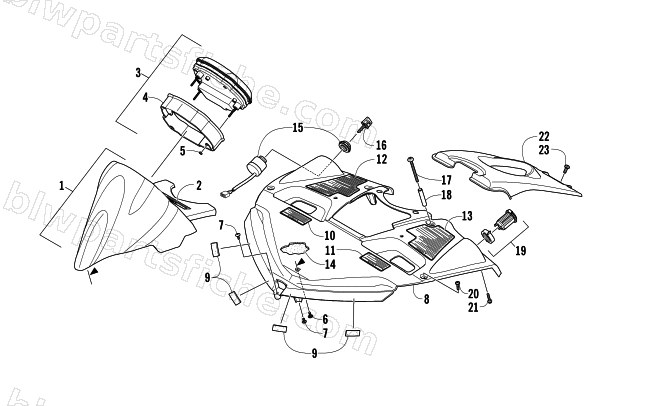

2007 Arctic Cat JAGUAR Z1 EARLY BUILD — CONSOLE ASSEMBLY
2007 JAGUAR Z1 EARLY BUILD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2718-031 | HOUSING, SPEEDO/TACH-W/ DECAL | 1 | $137.95 | |
| 2 | 7611-572 | DECAL,WARNING-HANDLEBAR RISER | 1 | $53.95 | |
| 3 | 0620-304 | SPEEDO/TACH-DIGITAL-07 ACT-R | 1 | $708.95 | |
| 4 | 0620-281 | BRKT,RETAINING-SPEEDO/TACH | 1 | $52.95 | |
| 5 | 0620-280 | NUT,W/WASHER | 1 | $13.73 | |
| 6 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 7 | 1623-463 | SCREW,PT THREAD FORMING-K60-2.69X12mm | 1 | $1.78 | |
| 8 | 2718-060 | CONSOLE,W/DECALS-PTD GRN | 1 | $248.95 | |
| 9 | 0619-946 | TAPE,DOUBLE COATED-ACYLIC FOAM(1'LENGTH) | 1 | $37.95 | |
| 10 | 7611-575 | DECAL,CAUTION-ENGLISH | 1 | $15.11 | |
| 11 | 7611-574 | DECAL,CAUTION-FRENCH | 1 | $15.11 | |
| 12 | 7611-428 | DECAL,WARNING-FRENCH | 1 | $16.49 | |
| 13 | 7611-427 | DECAL,WARNING-ENGLISH | 1 | $16.49 | |
| 14 | 0717-199 | KIT,CONSOLE FOAM-SERV PARTS | 1 | $57.95 | |
| 15 | 0609-698 | SWITCH, IGNITION-W/KEY | 1 | $156.95 | |
| 16 | 0409-059 | KEY,BLANK (A SERIES) | 1 | $32.95 | |
| 17 | 8468-680 | SCREW,MACH-TSPNH M6X1.0X80 CL8.8 BLK | 1 | $3.02 | |
| 18 | 1623-591 | SPACER,.375" OD X.26" ID X 56MM | 1 | $29.95 | |
| 19 | 0641-897 | OUTLET, ACCESSORY - 12V DC | 1 | $23.39 | |
| 20 | 1623-621 | SCREW,PT-TSRWH M6X2.69X25MM ZINC & BLK | 1 | $1.95 | |
| 21 | 0623-785 | SCREW,SELF TAP-HWH #10-16 X 1 TYPE B Z&Y | 1 | $0.68 | |
| 22 | 3706-012 | CLOSE-OFF,HANDLEBAR-PTD MATTE BLK | 1 | $110.95 | |
| 23 | 0423-396 | SCREW,SELF TAP-TSPH M6-1.0X15 | 1 | $1.09 |
