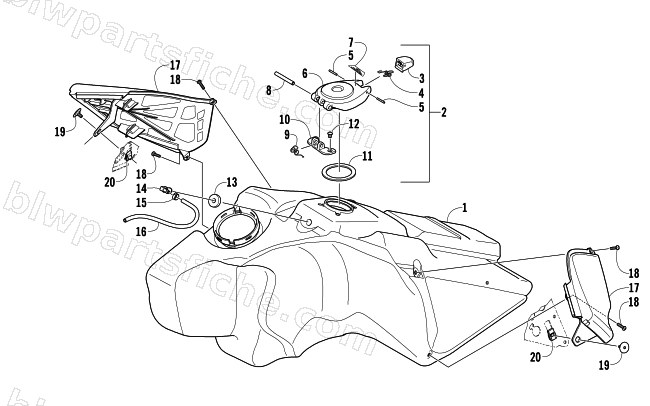

2007 Arctic Cat JAGUAR Z1 EARLY BUILD — GAS TANK ASSEMBLY
2007 JAGUAR Z1 EARLY BUILD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1770-113 | R/B 1770-224 | 1 | $501.95 | |
| 2 | 1670-812 | CAP,GAS-ASSY | 1 | $74.95 | |
| 11 | 1670-816 | SEAL,GAS CAP | 1 | $6.75 | |
| 12 | 8479-365 | SCREW,MACH-HSBH M6X1.0X8 CL8.8 Z&B | 1 | $1.37 | |
| 13 | 1670-325 | GROMMET, 1/4"-FUEL TANK | 1 | $2.88 | |
| 14 | 1670-494 | ELBOW, 90 DEG-FUEL TANK | 1 | $3.99 | |
| 15 | 1623-233 | CLAMP, HOSE-10.41mm ID | 1 | $0.68 | |
| 16 | 6101-001 | HOSE,.235 ID X .370 OD (100') | 1 | $892.95 | |
| 16 | 6101-009 | HOSE,.235 ID X .370 OD (50') | 1 | $469.95 | |
| 17 | 3706-408 | PAD,KNEE W/ BASE ASSY-RH | 1 | $106.95 | |
| 17 | 3706-409 | PAD,KNEE W/ BASE ASSY-LH | 1 | $106.95 | |
| 18 | 8470-510 | SCREW,MACH-TSPNH M5X.8X10 CL8.8 Z&Y | 1 | $0.68 | |
| 19 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 20 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 |
