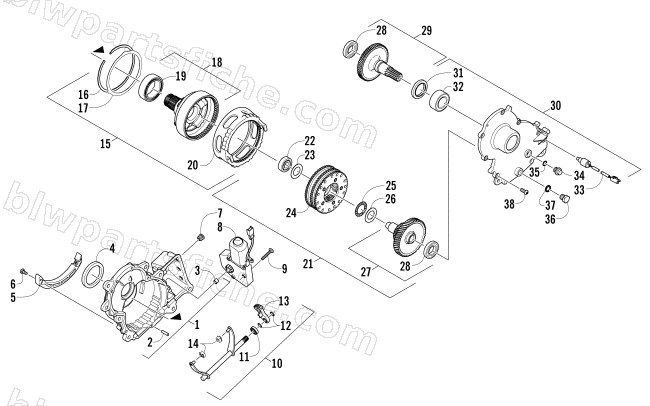

2007 Arctic Cat JAGUAR Z1 EARLY BUILD — GEARCASE ASSEMBLY
2007 JAGUAR Z1 EARLY BUILD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 4639-628 | ACT REVERSE GEARCASE FLUID 1-12 OZ | 1 | $17.95 | |
| 0 | 1702-078 | KIT,SERVICE-GEARCASE | 1 | $2,729.95 | |
| 1 | 0702-812 | GEARCASE - ASSY | 1 | $230.95 | |
| 2 | 1602-915 | PIN,DOWEL-M5 DIA X 14 | 1 | $2.47 | |
| 3 | 1602-916 | BEARING,MB 0808 DU | 1 | $1.50 | |
| 4 | 2602-159 | SEAL,OIL-PRE LUBE-50 X 65 X 8MM | 1 | $24.77 | |
| 5 | 1602-993 | PROTECTOR,REVERSE GEARCASE | 1 | $40.95 | |
| 6 | 0423-396 | SCREW,SELF TAP-TSPH M6-1.0X15 | 1 | $1.09 | |
| 7 | 1602-917 | PLUG,PLASTIC-16MM | 1 | $2.06 | |
| 8 | 7999-272 | ACTUATOR,SHIFT-ACT-R-ASSY | 1 | $198.29 | |
| 9 | 1623-644 | SCREW,MACH-TSPNH M6X1.0X35 BLKW/2353 | 1 | $6.47 | |
| 10 | 1702-109 | KIT,SHIFT FORK-ASSY | 1 | $584.95 | |
| 11 | 2602-013 | SEAL,OIL-SHIFT ROD 12X22X7 | 1 | $3.99 | |
| 12 | 2602-057 | RING, RETAINING, EXT-12MM | 1 | $0.95 | |
| 13 | 1702-086 | ARM,SHIFT FORK-11T-REVERSE W/PIN | 1 | $330.95 | |
| 14 | 2602-127 | BLOCK,SLIDER-SHIFT FORK | 1 | $4.26 | |
| 15 | 0702-910 | SLIDER,OUTER - ASSY | 1 | $838.95 | |
| 16 | 2602-040 | RING,RETAINING-136MM X 1.09MM | 1 | $17.87 | |
| 17 | 2602-064 | WASHER,THRUST-LOCK-116 X 131.5 X .9 | 1 | $13.73 | |
| 20 | 2602-063 | SLIDER, OUTER | 1 | $279.95 | |
| 21 | 1702-155 | GEAR,OUTPUT-63T/34T 5P-SPLINED-ASSY | 1 | $975.95 | |
| 22 | 2602-108 | BEARING,TRANSFER GEAR-17mm- PEER | 1 | $8.21 | |
| 23 | 2602-058 | WASHER,SPACER-.681X1.000X.040 | 1 | $2.75 | |
| 24 | 1702-130 | GEAR,OUTPUT-5P-ASSY | 1 | $713.95 | |
| 25 | 2602-317 | BEARING, THRUST 25X42MM (INA) | 1 | $12.35 | |
| 26 | 2602-316 | WASHER, THRUST 25X42X1MM (INA) | 1 | $3.44 | |
| 27 | 1702-156 | GEAR,TRANSFER-SPLINED ASSY 63T/34T | 1 | $275.95 | |
| 28 | 1602-981 | BEARING,25MMX47MMX8MM-PEER | 1 | $17.87 | |
| 29 | 0702-688 | SHAFT,INPUT-57T W/BEARING-ASSY | 1 | $174.95 | |
| 30 | 0702-814 | COVER,GEARCASE-ASSY | 1 | $188.95 | |
| 31 | 2602-160 | SEAL,OIL-PRE LUBE-2.099 X 1.311 X .315 | 1 | $23.39 | |
| 32 | 1602-982 | BEARING,SHAFT-INPUT-30MM-PEER | 1 | $34.95 | |
| 33 | 0630-224 | SWITCH,GEAR INDICATOR | 1 | $53.95 | |
| 34 | 0623-293 | PLUG, DRAIN | 1 | $2.61 | |
| 35 | 1602-213 | O-RING,2-013 | 1 | $0.40 | |
| 36 | 0812-006 | PLUG, DRAIN MAGNETIC | 1 | $19.25 | |
| 37 | 0830-017 | GASKET, METAL, COMPRESSION | 1 | $5.09 | |
| 38 | 8468-616 | SCREW,MACH-TSPNH M6X1.0X16 CL8.8 BLK | 1 | $0.68 |
