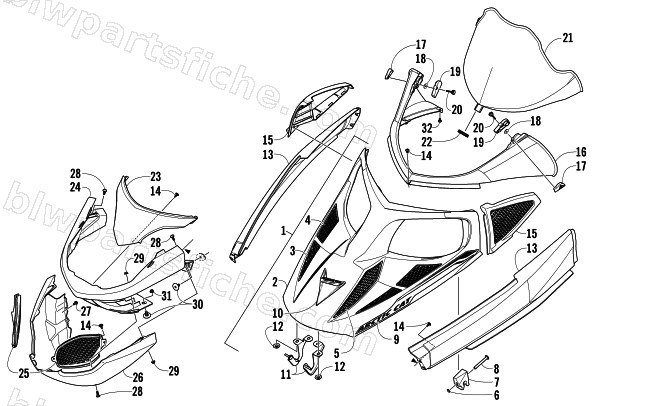

2007 Arctic Cat JAGUAR Z1 EARLY BUILD — HOOD, WINDSHIELD, AND FRONT BUMPER ASSEMBLY
2007 JAGUAR Z1 EARLY BUILD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2718-033 | HOOD W/DECALS | 1 | $436.95 | |
| 2 | 7999-063 | LID,HOOD-TRAIL PERF-MFG ASSY | 1 | $287.95 | |
| 3 | 4606-358 | VENT,HOOD-OUTER-FRONT RH | 1 | $5.95 | |
| 3 | 4606-359 | VENT, HOOD-OUTER-FRONT LH | 1 | $5.92 | |
| 4 | 4606-384 | VENT,HOOD-OUTER-REAR RH | 1 | $6.34 | |
| 4 | 4606-385 | VENT,HOOD-OUTER-REAR LH | 1 | $6.34 | |
| 5 | 4606-614 | VENT,HOOD LID-INNER-RH-MOLD BLK | 1 | $26.95 | |
| 5 | 4606-615 | VENT,HOOD LID-INNER-LH-MOLD BLK | 1 | $26.95 | |
| 6 | 1623-611 | CLIP,RETAINING PIN-HOOD | 1 | $3.95 | |
| 7 | 1623-614 | CLIP,RUBBER-HOOD-HOLDDOWN-RH | 1 | $13.73 | |
| 7 | 1623-615 | CLIP,RUBBER-HOOD-HOLDDOWN-LH | 1 | $13.73 | |
| 8 | 1623-610 | PIN,RETAINING-HOOD | 1 | $22.01 | |
| 9 | 7611-562 | DECAL,HOOD-UPR PANEL-RH | 1 | $22.01 | |
| 9 | 7611-563 | DECAL,HOOD-UPR PANEL-LH | 1 | $21.95 | |
| 10 | 7611-560 | DECAL,CREST-Z1 | 1 | $32.95 | |
| 11 | 3706-348 | BRKT,LID HINGE- RH-PTD BLK | 1 | $24.77 | |
| 11 | 3706-347 | BRKT,LID HINGE-LH-PTD BLK | 1 | $24.77 | |
| 12 | 1623-469 | NUT,STAMPED- 0.330 | 1 | $1.23 | |
| 13 | 3706-352 | SPAR,FRONT-RH PTD MATTE BLK | 1 | $112.95 | |
| 13 | 3706-353 | SPAR,FRONT-LH PTD MATTE BLK | 1 | $113.95 | |
| 14 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 15 | 4606-318 | BEZEL,INTAKE ASSY-RH | 1 | $47.95 | |
| 15 | 4606-319 | BEZEL,INTAKE ASSY-LH | 1 | $47.95 | |
| 16 | 3606-700 | BASE,WINDSHIELD | 1 | $184.95 | |
| 17 | 4606-782 | LATCH,WINDSHIELD-FIXED-RH | 1 | $27.95 | |
| 17 | 4606-783 | LATCH,WINDSHIELD-FIXED-LH | 1 | $27.95 | |
| 18 | 1623-583 | WASHER,LATCH-WINDSHIELD-RUBBER | 1 | $0.95 | |
| 19 | 4606-392 | PLATE,BACKING-LATCH-RH | 1 | $26.95 | |
| 19 | 4606-393 | PLATE,BACKING-LATCH-LH | 1 | $26.95 | |
| 20 | 1623-647 | SCREW,THUMB-WINDSHIELD | 1 | $17.87 | |
| 21 | 3606-701 | WINDSHIELD,TRAIL PERF | 1 | $104.95 | |
| 22 | 4606-274 | GROMMET,FRONT-RUBBER | 1 | $13.73 | |
| 23 | 3706-351 | FACIA,BUMPER-UPPER PTD PRL CAT GRN | 1 | $79.95 | |
| 24 | 3706-349 | BUMPER,FRONT CLIP-PTD MATTE BLK | 1 | $128.95 | |
| 25 | 4606-170 | VENT,BUMPER-RH | 1 | $12.95 | |
| 25 | 4606-605 | VENT,BUMPER-LH-MOLD BLK | 1 | $26.95 | |
| 26 | 3706-350 | FACIA,BUMPER-LOWER PTD PRL CAT GRN | 1 | $132.95 | |
| 27 | 0623-966 | SCREW,SELF TAP-HWH M6 X 12 Z (TRI LOB) | 1 | $1.09 | |
| 28 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 29 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 30 | 0423-130 | SCREW,FUEL TANK | 1 | $5.65 | |
| 31 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 32 | 0623-785 | SCREW,SELF TAP-HWH #10-16 X 1 TYPE B Z&Y | 1 | $0.68 |
