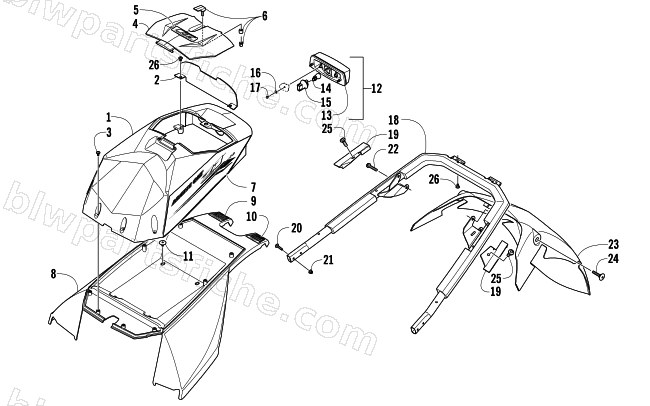

2007 Arctic Cat JAGUAR Z1 EARLY BUILD — REAR BUMPER, STORAGE BOX, AND TAILLIGHT ASSEMBLY
2007 JAGUAR Z1 EARLY BUILD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3706-025 | BOX,STORAGE-REAR-PTD MATTE BLK | 1 | $109.95 | |
| 2 | 3606-676 | COVER, TAILLIGHT | 1 | $16.95 | |
| 3 | 1623-463 | SCREW,PT THREAD FORMING-K60-2.69X12mm | 1 | $1.78 | |
| 4 | 3706-057 | LID,STORAGE BOX-REAR-PTD MATTE BLK | 1 | $178.95 | |
| 5 | 7611-561 | DECAL,TRUNK-TOP | 1 | $28.95 | |
| 6 | 1406-599 | LATCH,SWELL (SOUTHCO) | 1 | $17.87 | |
| 7 | 7611-570 | DECAL,TRUNK-RH | 1 | $42.95 | |
| 7 | 7611-571 | DECAL,TRUNK-LH | 1 | $45.95 | |
| 8 | 3706-130 | FENDER,REAR TUNNEL-PTD MATTE BLK | 1 | $288.95 | |
| 9 | 7611-432 | DECAL,WARNING-TOWING/TRACK-FRENCH | 1 | $15.11 | |
| 10 | 7611-433 | DECAL,WARNING-TOWING/TRACK-ENGLISH | 1 | $15.11 | |
| 11 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 12 | 0509-022 | TAILLIGHT,ASSY | 1 | $82.95 | |
| 13 | 0509-025 | HOUSING,TAILLIGHT-ASSY | 1 | $66.95 | |
| 14 | 0409-056 | BULB,TAIL LIGHT-3157 | 1 | $19.25 | |
| 15 | 0409-057 | SOCKET,TAIL LIGHT | 1 | $15.11 | |
| 16 | 8053-212 | WASHER,LOCK-1/4 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 17 | 0623-301 | SCREW,SELF TAP-HWH 10X1/2 AB Z&Y | 1 | $0.12 | |
| 18 | 4606-416 | BUMPER,REAR-W/ OVERMOLD | 1 | $159.95 | |
| 19 | 4606-418 | COVER,BRKT-REAR BUMPER-OVERMOLD-RH | 1 | $5.95 | |
| 19 | 4606-419 | COVER,BRKT-REAR BUMPER-OVERMOLD-LH | 1 | $9.95 | |
| 20 | 8476-630 | SCREW,MACH-TSTRH M6X1.0X30 Z&Y | 1 | $1.09 | |
| 21 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 22 | 1623-428 | SCREW,CAP-HFH M8 X 1.25 X 40 TRILOBE Z&Y | 1 | $4.95 | |
| 23 | 5606-118 | SNOWFLAP,W/8611-017 DECAL | 1 | $217.95 | |
| 24 | 1623-532 | SCREW,SELF TAPPING-M8X45 TRILOBE Z&Y | 1 | $7.95 | |
| 25 | 0423-396 | SCREW,SELF TAP-TSPH M6-1.0X15 | 1 | $1.09 | |
| 26 | 1623-022 | SCREW,48-2 TXSPNH 1/4-10X.625 Z&Y | 1 | $6.47 |
