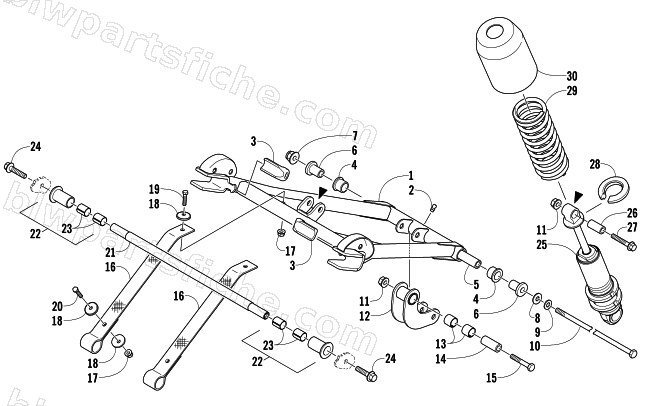

2007 Arctic Cat JAGUAR Z1 EARLY BUILD — REAR SUSPENSION FRONT ARM ASSEMBLY
2007 JAGUAR Z1 EARLY BUILD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1704-478 | ARM,FRONT-FABR | 1 | $292.95 | |
| 2 | 1623-010 | FIT,GREASE-1/4-28 UNF-SELF THREAD | 1 | $1.92 | |
| 3 | 3604-141 | BUMPER,SLIDER-FRONT | 1 | $4.26 | |
| 4 | 0104-386 | BUSHING,REAR ARM | 1 | $4.26 | |
| 5 | 2604-963 | AXLE,FRONT ARM-INNER-6.630" | 1 | $20.95 | |
| 6 | 2603-497 | BUSHING,FRONT ARM - PWDR METAL | 1 | $2.95 | |
| 7 | 8047-490 | NUT,HEX FLG-NY LOCK 3/8-16 GR G Z&Y | 1 | $0.95 | |
| 8 | 0623-664 | WASHER,FLAT 1.00X.390X.164 Z&Y | 1 | $1.23 | |
| 9 | 0623-044 | WSHR,FLAT HARD .375 X.875 | 1 | $4.68 | |
| 10 | 1623-037 | SCREW, CAP-HH 3/8-16X10 GD 8 Z&Y | 1 | $6.47 | |
| 11 | 8041-486 | NUT,HEX THIN LOCK-NYL 3/8-16 Z&Y | 1 | $0.40 | |
| 12 | 1704-473 | PIVOT,REAR SHOCK-FABR | 1 | $34.95 | |
| 13 | 1603-895 | BEARING, 10DU10-FRONT SUSPENSION | 1 | $5.37 | |
| 14 | 2603-305 | AXLE,A-ARM-LWR INNER | 1 | $15.11 | |
| 15 | 8002-227 | SCREW,CAP-HH 3/8-16 X2.00 G5 Z&Y | 1 | $1.95 | |
| 16 | 3604-138 | STRAP,LIMITER-1.25"X16.77" | 1 | $17.87 | |
| 17 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 18 | 0623-875 | WASHER, BACKING-7MM ID X 11/8OD | 1 | $1.78 | |
| 19 | 8002-041 | SCREW,CAP-HH 1/4-20 X.875 G5 Z&Y | 1 | $0.40 | |
| 20 | 8002-045 | SCREW, CAP-HH 1/4-20 X 1.50 G5 Z&Y | 1 | $0.95 | |
| 21 | 3604-120 | AXLE,FRONT SLIDER-15.362" | 1 | $52.95 | |
| 22 | 1704-414 | BUSHING, FRT SLIDER-FAB | 1 | $24.77 | |
| 23 | 2604-996 | BEARING, GARLOCK-9/16 | 1 | $13.95 | |
| 24 | 1623-536 | SCREW,CAP-HFH 3/8-16 X 1.250 W/2353 | 1 | $3.16 | |
| 25 | 1704-555 | SHOCK,FRT ARM - IMP EXT - 11.77" | 1 | $521.95 | |
| 26 | 1603-531 | AXLE,SHOCK-FRT ARM | 1 | $4.26 | |
| 27 | 8020-226 | SCREW,CAP-HFH 3/8-16 X 1.75 Z&Y | 1 | $2.95 | |
| 28 | 3604-190 | RETAINER,SPRING | 1 | $29.95 | |
| 29 | 1704-461 | SPRING,FRONT ARM-135#D BLK | 1 | $132.95 | |
| 30 | 0604-790 | COVER,SUSPENSION SPRING (SHORT) | 1 | $24.77 |
