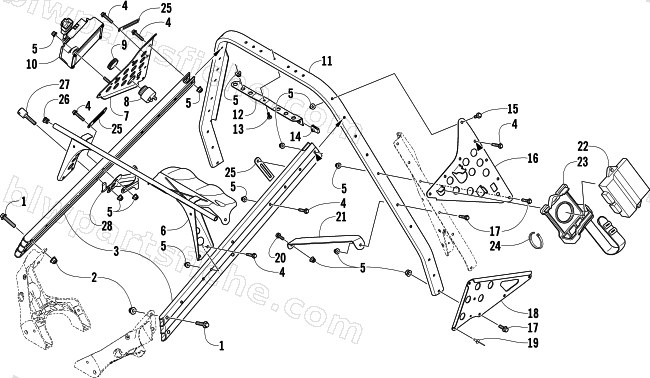

2007 Arctic Cat JAGUAR Z1 EARLY BUILD — STEERING SUPPORT ASSEMBLY
2007 JAGUAR Z1 EARLY BUILD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8408-840 | SCREW,CAP-HFH M8X1.25X40 CL8.8 Z&Y | 1 | $1.23 | |
| 2 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 3 | 0607-814 | FRAME,UPR-FRT INNER-MACH | 1 | $38.95 | |
| 4 | 8408-635 | SCREW,CAP-HFH M6X1.0X35 CL8.8 Z&Y | 1 | $0.68 | |
| 5 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 6 | 3706-659 | BRKT,HEADLIGHT SUPPORT-W/HEAT SHIELD | 1 | $251.95 | |
| 7 | 1707-100 | GUSSET,SUPPORT W/ STUDS-RH | 1 | $26.95 | |
| 8 | 0630-010 | ALARM,REVERSE | 1 | $112.95 | |
| 9 | 0630-017 | RING,RETAINING-REV ALARM | 1 | $12.35 | |
| 10 | 0637-341 | KIT,UPDATE-CONTROL MODULE | 1 | $422.95 | |
| 11 | 0605-862 | SUPPORT,STEERING-MACH | 1 | $109.95 | |
| 12 | 4606-771 | PLATE,NUT-STEERING SUPPORT-4 STRK | 1 | $17.95 | |
| 13 | 0623-574 | SCREW,SELF TAP-TSTRH 10-24 X 5/8 TP F Z | 1 | $6.47 | |
| 14 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 15 | 8408-625 | SCREW,CAP-HFH M6X1.0X25 CL8.8 Z&Y | 1 | $0.54 | |
| 16 | 0607-897 | GUSSET,SUPPORT-STEERING SUPPORT/SPAR-LH | 1 | $58.95 | |
| 17 | 8408-630 | SCREW,CAP-HFH M6X1.0X30 CL8.8 Z&Y | 1 | $0.95 | |
| 18 | 3706-634 | BRKT, OUTER FOOTREST-RH-PTD MATTE BLK | 1 | $19.95 | |
| 18 | 3706-635 | BRKT, OUTER FOOTREST-LH-PTD MATTE BLK | 1 | $20.95 | |
| 19 | 1623-130 | RIVET,3/16 HUCK-M4 | 1 | $1.64 | |
| 20 | 8408-616 | SCREW,CAP-HFH M6X1.0X16 CL8.8 Z&Y | 1 | $0.54 | |
| 21 | 4606-408 | BRKT,SUPPORT-CLUTCH GUARD | 1 | $56.95 | |
| 22 | 3007-573 | ECU 07 Z1 | 1 | $2,446.95 | |
| 23 | 0645-506 | MOUNT,ECU | 1 | $34.95 | |
| 24 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 | |
| 25 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 26 | 0623-562 | PLUG,HOLE-3/8 DIA-BLK | 1 | $1.37 | |
| 27 | 2612-061 | PIN,MTG-RES/CHASSIS | 1 | $17.95 | |
| 28 | 3706-682 | BRKT,COOLANT TANK-PTD | 1 | $22.95 |
