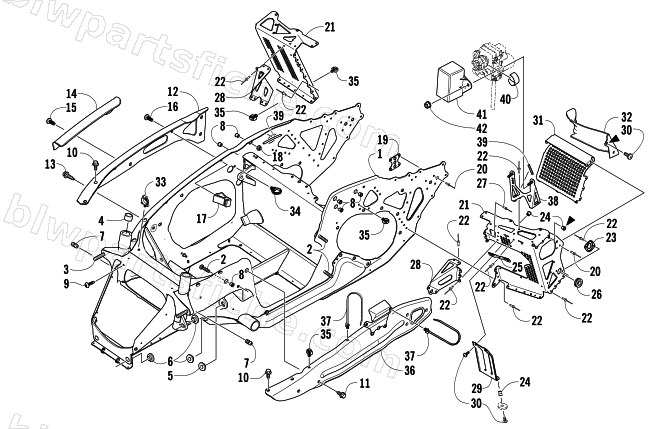

FRONT FRAME AND FOOTREST ASSEMBLY
2007 M1000 EFI 153 SNO PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1707-144 | CHASSIS/TUNNEL-S/P ASSY | 1 | $2,086.59 | |
| 1 | 1707-178 | CHASSIS,S/P ASSY-UNPTD | 1 | $1,870.95 | |
| 2 | 1623-359 | BOLT,RIBBED CAR-5/16-18X1.75 | 1 | $2.06 | |
| 3 | 1623-019 | BOLT,RIB CAR-3/8-16X2.00 | 1 | $3.85 | |
| 4 | 0675-161 | BEARING-14DU12 | 1 | $16.49 | |
| 5 | 0607-656 | BUSHING, UPPER- A-ARM | 1 | $2.47 | |
| 6 | 0607-657 | BUSHING, LOWER- A-ARM | 1 | $2.47 | |
| 7 | 1623-010 | FIT,GREASE-1/4-28 UNF-SELF THREAD | 1 | $1.92 | |
| 8 | 0623-581 | INSERT, A L SERIES AL57-518-150 5/16-18 | 1 | $3.16 | |
| 9 | 1623-022 | SCREW,48-2 TXSPNH 1/4-10X.625 Z&Y | 1 | $6.47 | |
| 10 | 1623-480 | SCREW,CAP-HFH 1/4 20X.56 ZY (2353) DPT | 1 | $1.95 | |
| 11 | 1623-481 | SCREW,CAP-HFH 5/16 18X.875 ZY (204) DPT | 1 | $2.06 | |
| 12 | 6606-068 | BRACE,SIDE PLATE-RH | 1 | $168.95 | |
| 13 | 1623-561 | SCREW,CAP-HFH 5/16-18X0.75 W/204 | 1 | $1.78 | |
| 14 | 4606-793 | PROTECTOR,MAIN HARNESS-FORMED | 1 | $65.95 | |
| 15 | 1623-353 | SCREW,SELF TAP-TSPNH 10-24 X 3/8 Z&Y | 1 | $1.64 | |
| 16 | 1623-204 | SCREW,PLASTITE-HWH 1/4-10X1.0 Z&Y | 1 | $1.23 | |
| 17 | 0608-449 | GUIDE,ROPE-WIDE | 1 | $7.95 | |
| 18 | 8041-426 | NUT,HEX THIN LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 19 | 2706-580 | PLATE,BACKING-FRT ARM-PTD BLK | 1 | $15.11 | |
| 20 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 21 | 3706-418 | FOOTREST,RH-ASSY (W/O GROMMET) | 1 | $85.95 | |
| 21 | 3706-419 | FOOTREST,LH-ASSY (W/O GROMMET) | 1 | $85.95 | |
| 22 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 23 | 3606-837 | PLATE,RETAINING-GROMMET-FORMED | 1 | $62.95 | |
| 24 | 1623-657 | INSERT,AT SERIES-ATS2-1024 | 1 | $3.57 | |
| 25 | 0607-835 | PLATE,MTG-CLUTCH GUARD/FOOTREST | 1 | $3.57 | |
| 26 | 1623-529 | GROMMET,RUBBER-.50 IDX1.00 ODX.08 GRV | 1 | $3.85 | |
| 27 | 1623-264 | RIVET,CHERRY-CCPQ06-04 | 1 | $3.16 | |
| 28 | 3606-904 | GUSSET,FOOTREST-UPPER-RH | 1 | $62.95 | |
| 28 | 4606-353 | GUSSET,FOOTREST-UPPER-LH | 1 | $141.95 | |
| 29 | 3706-673 | PANEL,CLOSE OUT-FOOTREST-ASSY | 1 | $53.95 | |
| 30 | 1623-498 | SCREW,MACH-TSTRH 10-24X.375 RIE W/204 | 1 | $0.95 | |
| 31 | 4606-742 | PLATE,SUPPORT-FOOTREST-RH | 1 | $41.95 | |
| 31 | 4606-743 | PLATE,SUPPORT-FOOTREST-LH | 1 | $41.95 | |
| 32 | 4606-434 | COVER,FOOTREST-RH-INJ MOLD | 1 | $20.95 | |
| 32 | 4606-435 | COVER,FOOTREST-LH-INJ MOLD | 1 | $20.95 | |
| 33 | 1623-171 | CLIP,SNAP | 1 | $2.88 | |
| 34 | 0623-454 | CLIP,SNAP-IN (SPEEDO-CABLE) | 1 | $2.95 | |
| 35 | 1623-406 | CLIP,ROUTING-LOCKING-.350 | 1 | $2.47 | |
| 36 | 3706-903 | BRACE,SIDE PLATE-LH-ASSY | 1 | $109.95 | |
| 37 | 0623-677 | CABLE TIE,PUSH MOUNT-X MAS CLIP | 1 | $1.09 | |
| 38 | 3706-613 | BRKT,MTG-SERVO MOTOR-ASSY | 1 | $32.95 | |
| 39 | 0706-371 | TRIM,RACK-36 | 1 | $20.63 | |
| 40 | 5606-208 | CLIP,SERVO MOTOR | 1 | $29.95 | |
| 42 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 |
