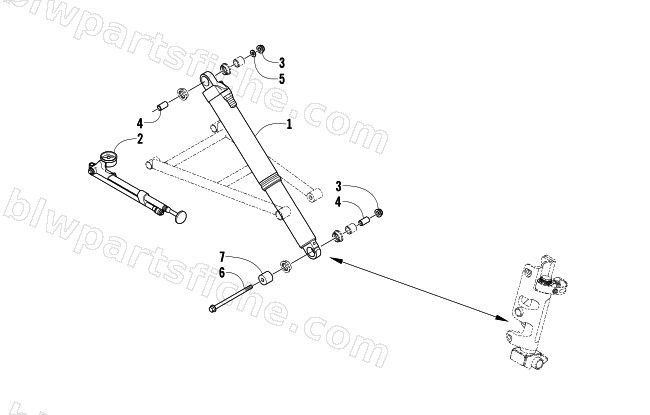

2007 Arctic Cat M1000 EFI 153 SNO PRO — FRONT SUSPENSION SHOCK ABSORBER ASSEMBLY
2007 M1000 EFI 153 SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2703-137 | SHOCK,SKI-FLOAT 17.55"-ASSY | 1 | $907.95 | |
| 2 | 2603-614 | PUMP,FOX HP W/BLEED-150 PSI (FLOAT2) | 1 | $69.95 | |
| 3 | 8047-486 | NUT,HEX FLG-NY LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 4 | 3604-594 | AXLE,SHOCK EYELET-10(ID)X20.7 MM | 1 | $4.40 | |
| 5 | 0623-991 | WSHR, FLAT ALUM-.390 X 1.125 X .125 | 1 | $1.95 | |
| 6 | 8020-232 | SCREW,CAP-HFH 3/8-16 X 3.25 Z&Y | 1 | $5.65 | |
| 7 | 0603-648 | SPACER,SHOCK-MTG | 1 | $15.11 |
