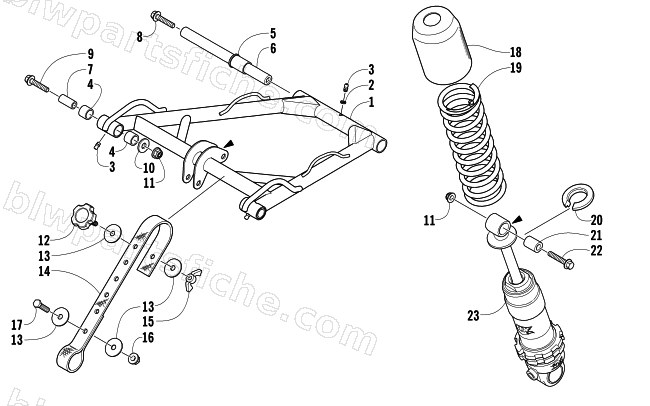

REAR SUSPENSION FRONT ARM ASSEMBLY
2007 M1000 EFI 153
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1704-589 | ARM,FRONT-L/W-FAB(BLK) | 1 | $204.95 | |
| 2 | 1623-011 | WASHER- GREASE FITTING | 1 | $0.68 | |
| 3 | 1623-010 | FIT,GREASE-1/4-28 UNF-SELF THREAD | 1 | $1.92 | |
| 4 | 0604-889 | BUSHING,FRONT ARM | 1 | $3.71 | |
| 5 | 2604-128 | BUSHING,FLARED-PLASTIC | 1 | $14.95 | |
| 6 | 2604-591 | AXLE,ALUM-.750 X 8.636-MACH | 1 | $41.95 | |
| 7 | 1604-162 | AXLE,FRONT ARM | 1 | $10.97 | |
| 8 | 1623-248 | SCREW,CAP-HFH 3/8-16X1.125 W/2353 | 1 | $4.40 | |
| 9 | 8020-229 | SCREW,CAP-HFH 3/8-16 X 2.50 Z&Y | 1 | $16.49 | |
| 10 | 0114-197 | WASHER,FLAT .390 X 1.06 X.125 | 1 | $1.23 | |
| 11 | 8047-486 | NUT,HEX FLG-NY LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 12 | 1623-044 | KNOB,ADJUSTER-1/4-20 X 1.0 LNG | 1 | $6.75 | |
| 13 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 14 | 2604-657 | STRAP,LIMITER-FRONT ARM | 1 | $20.63 | |
| 15 | 0623-325 | NUT,WING - 1/4-20 NYLON SL | 1 | $2.06 | |
| 16 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 17 | 8002-043 | SCREW,CAP-HH 1/4-20 X1.125 G5 Z&Y | 1 | $0.68 | |
| 18 | 0604-590 | COVER,SUSPENSION SPRING (LONG) | 1 | $27.95 | |
| 19 | 1704-461 | SPRING,FRONT ARM-135#D BLK | 1 | $132.95 | |
| 20 | 1603-890 | RETAINER,SPRING | 1 | $13.73 | |
| 21 | 1603-531 | AXLE,SHOCK-FRT ARM | 1 | $4.26 | |
| 22 | 8020-226 | SCREW,CAP-HFH 3/8-16 X 1.75 Z&Y | 1 | $2.95 | |
| 23 | 1704-351 | SHOCK,FRT ARM-ZERO PRO (FOX) | 1 | $421.95 |
