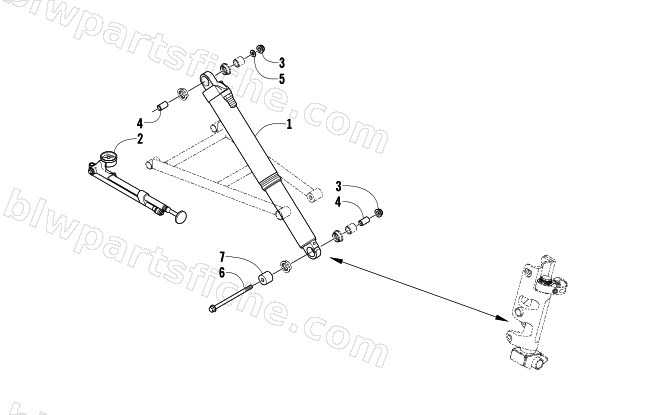

2007 Arctic Cat M1000 EFI 162 SNO PRO — FRONT SUSPENSION SHOCK ABSORBER ASSEMBLY
2007 M1000 EFI 162 SNO PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2703-137 | SHOCK,SKI-FLOAT 17.55"-ASSY | 1 | $907.95 | |
| 2 | 2603-614 | PUMP,FOX HP W/BLEED-150 PSI (FLOAT2) | 1 | $69.95 | |
| 3 | 8047-486 | NUT,HEX FLG-NY LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 4 | 3604-594 | AXLE,SHOCK EYELET-10(ID)X20.7 MM | 1 | $4.40 | |
| 5 | 0623-991 | WSHR, FLAT ALUM-.390 X 1.125 X .125 | 1 | $1.95 | |
| 6 | 8020-232 | SCREW,CAP-HFH 3/8-16 X 3.25 Z&Y | 1 | $5.65 | |
| 7 | 0603-648 | SPACER,SHOCK-MTG | 1 | $15.11 |
