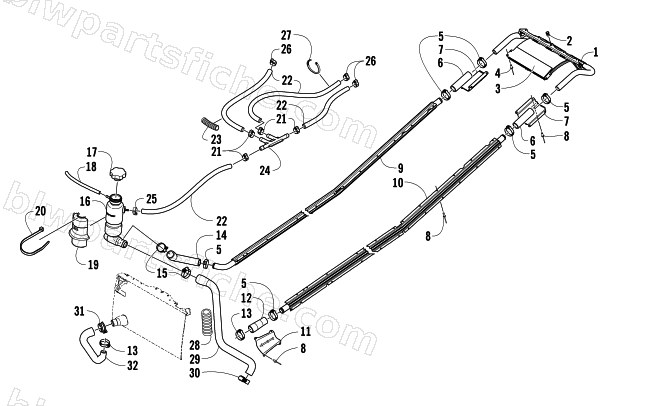

2007 Arctic Cat M1000 EFI 162 — COOLING ASSEMBLY
2007 M1000 EFI 162
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3706-388 | HEAT EXCHANGER,REAR-ASSY | 1 | $567.95 | |
| 2 | 0623-582 | INSERT, A L SERIES (1/4-20) | 1 | $3.16 | |
| 3 | 0617-534 | FOAM,TUNNEL/HEAT EXCHANGER | 1 | $2.61 | |
| 4 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 5 | 1623-349 | CLAMP,H0SE-CRIMP-31.6 | 1 | $3.99 | |
| 6 | 0610-552 | HOSE,COOLANT-FRT EXCH/LH EXCH | 1 | $16.49 | |
| 7 | 3606-564 | PROTECTOR,HOSE-REAR | 1 | $16.49 | |
| 8 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 8 | 8060-488 | RIVET,BLIND-DH SS56 ZINC | 1 | $0.40 | |
| 9 | 4606-776 | HEAT EXCH,CORNER-162"-R/H-FORMED | 1 | $137.95 | |
| 10 | 4606-777 | HEAT EXCH,CORNER-162"-L/H-FORMED | 1 | $128.95 | |
| 11 | 4606-270 | PROTECTOR,HOSE-FRONT | 1 | $13.73 | |
| 12 | 0610-679 | HOSE,COOLANT-FRT EXCH/LH EXCH | 1 | $22.01 | |
| 13 | 1623-656 | CLAMP,H0SE-CRIMP-36.1 | 1 | $3.99 | |
| 14 | 0610-659 | HOSE,COOLANT-RH EXCH/TANK | 1 | $30.95 | |
| 15 | 1623-093 | CLAMP,BAND-SAE #20 | 1 | $5.78 | |
| 16 | 3706-684 | TANK,COOLANT-W/FITTING | 1 | $180.95 | |
| 17 | 4606-209 | CAP,COOLANT BOTTLE (W/THREADS) | 1 | $26.95 | |
| 18 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 18 | 0610-015 | HOSE,GAS 1/4 X100' | 1 | $231.59 | |
| 19 | 5606-040 | SHIELD,HEAT-COOLANT BOTTLE | 1 | $37.95 | |
| 20 | 0623-144 | TIE,CABLE-17.5 LONG | 1 | $0.54 | |
| 21 | 1623-655 | CLAMP,HOSE-CRIMP-11.3 | 1 | $3.30 | |
| 22 | 0610-538 | HOSE,VENT- 25' (1054-152) | 1 | $117.95 | |
| 23 | 0716-558 | LOOM,PROTECTIVE-10' (0619-342) | 1 | $16.49 | |
| 24 | 0610-717 | FITTING,COOLANT HOSE-DOUBLE T | 1 | $3.02 | |
| 25 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 | |
| 26 | 1623-619 | CLAMP,HOSE-CRIMP-10.5 | 1 | $4.54 | |
| 27 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 28 | 1619-109 | PROTECTOR,HOSE-1.48 X 1.25 X 7.00" | 1 | $8.95 | |
| 29 | 0610-681 | HOSE,COOLANT-TANK/THERMOSTAT | 1 | $60.95 | |
| 30 | 1623-230 | CLAMP,SCREW-#016 | 1 | $12.35 | |
| 31 | 1623-322 | CLAMP,HOSE-SPRING (15W X 35) | 1 | $4.26 | |
| 32 | 0610-680 | HOSE,COOLANT-ENG/FRT EXCH | 1 | $33.95 |
