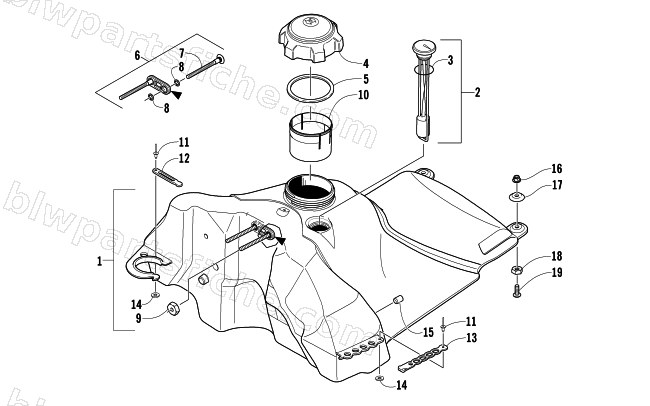

GAS TANK ASSEMBLY
2007 M6 EFI 153
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-767 | TANK,GAS-S/P ASSY | 1 | $344.95 | |
| 2 | 1670-824 | GAUGE,FUEL-ASSY W/GASKET | 1 | $108.95 | |
| 4 | 1670-447 | CAP,VENTED-GAS | 1 | $53.95 | |
| 6 | 1705-116 | PLATE,MTG-STEERING POST-ASSY | 1 | $41.95 | |
| 7 | 1623-447 | BOLT,RIBBED CAR-ST. POST/GASTANK-MTG | 1 | $65.95 | |
| 8 | 1623-448 | O-RING,3/8 X 9/16 X 3/32-VITON | 1 | $1.64 | |
| 9 | 1623-483 | NUT,AL-3/8-16X1" HEX-0.38 THK | 1 | $12.35 | |
| 10 | 1670-801 | EXTENSION,NECK-GAS TANK-4" | 1 | $13.73 | |
| 11 | 8061-630 | RIVET,BLIND-LF AA68 BLACK | 1 | $1.09 | |
| 12 | 3606-173 | STRAP,HOLDDOWN-AIR SILENCER | 1 | $5.37 | |
| 13 | 4606-160 | STRAP,HOLDDOWN-SPARK PLUG | 1 | $12.35 | |
| 14 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 16 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 17 | 0123-765 | WASHER,CUP .265X1.06 12 GA | 1 | $5.78 | |
| 18 | 1623-077 | NUT,AL-1/4-20X3/4 HEX-0.25 THK | 1 | $3.85 | |
| 19 | 8017-582 | R/B 1623-689 | 1 | $0.65 |
