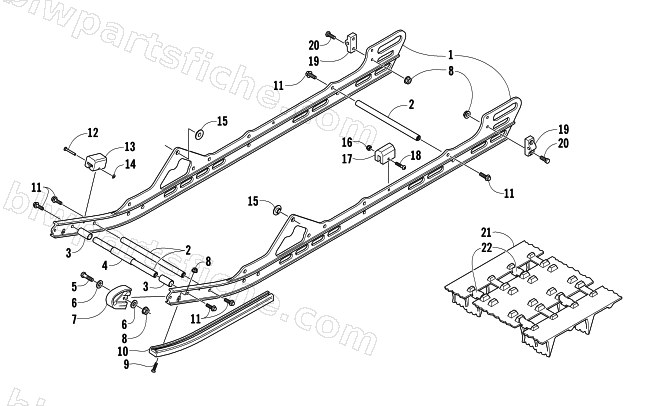

SLIDE RAILS AND TRACK ASSEMBLY
2007 M8 EFI 141
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2604-999 | RAIL,SUSP-141" FORMED-MACHINED | 1 | $382.95 | |
| 2 | 0604-426 | AXLE, XBRC-.625X8.750 (5/16-18) | 1 | $34.95 | |
| 3 | 2604-659 | SPACER,AL-.750 X .058 X 1.50 | 1 | $9.95 | |
| 4 | 2604-660 | SPACER,AL-.750 X .058 X 2.50 | 1 | $12.95 | |
| 5 | 8002-043 | SCREW,CAP-HH 1/4-20 X1.125 G5 Z&Y | 1 | $0.68 | |
| 6 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 7 | 3604-003 | NOSEPIECE,RAIL-EXVOLUTE | 1 | $19.25 | |
| 8 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 9 | 0123-859 | SCREW,MACH-PHFH 1/4-20 X 1 1/8 Z&Y | 1 | $1.09 | |
| 10 | 2604-799 | WEARSTRIP,162" SLIDE RAIL-BLK | 1 | $38.95 | |
| 11 | 1623-502 | SCREW,CAP-HFH 5/16-18X1.25 W/2353 | 1 | $1.78 | |
| 12 | 0123-767 | RIVET,SOLID-1/8 X 1.50 | 1 | $0.95 | |
| 13 | 0104-631 | PAD,SHOCK-RUBBER | 1 | $6.06 | |
| 14 | 0123-766 | NUT,PUSH-.125 STUD | 1 | $1.23 | |
| 15 | 2604-733 | INSERT,RAIL-3/8 X 1.00" | 1 | $12.35 | |
| 16 | 8041-246 | NUT,HEX THIN LOCK-NYL 10-24 Z&Y | 1 | $0.26 | |
| 17 | 1604-429 | PAD,SHOCK-RUBBER | 1 | $6.75 | |
| 18 | 8017-405 | SCREW,MACH-TSTRH 10-24X1.50 GR2 Z&Y | 1 | $0.95 | |
| 19 | 0704-352 | ADJUSTER,TRACK-MACH. | 1 | $24.77 | |
| 20 | 8002-042 | SCREW,CAP-HH 1/4-20 X1.00 G5 Z&Y | 1 | $0.40 | |
| 21 | 1602-994 | TRACK,CHALL-15"X141"X2.25" (3.0 PITCH) | 1 | $1,429.95 | |
| 22 | 2602-385 | CLIP,GUIDE | 1 | $4.40 |
