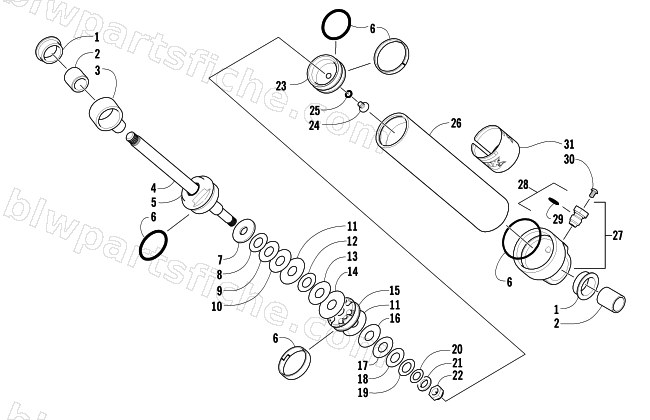

2007 Arctic Cat M8 EFI 153 SNO PRO — REAR SUSPENSION REAR ARM SHOCK ABSORBER
2007 M8 EFI 153 SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1704-568 | SHOCK,REAR ARM-ZERO PRO (SNO PRO) | 1 | $427.95 | |
| 0 | 4639-368 | S/M SYN SHOCK OIL MED WT-1 QUART | 1 | $27.95 | |
| 1 | 1604-222 | BUSHING,REAR ARM SHOCK-.125" LIP | 1 | $17.87 | |
| 2 | 2604-223 | SLEEVE, .571 X .815 X .950TLG | 1 | $33.95 | |
| 3 | 0604-893 | EYELET, SHOCK(FOX ONLY) | 1 | $81.95 | |
| 5 | 2604-413 | BEARING,ENDCAP.498" X 1.21"-ASSY | 1 | $151.95 | |
| 6 | 2604-815 | SEAL/BEARING-REBUILD KIT | 1 | $92.95 | |
| 7 | 0603-540 | WASHER, TOP OUT-1.125OD X .378 ID X.093 | 1 | $16.49 | |
| 8 | 0603-886 | VALVE, SHOCK .900 X.015 | 1 | $14.95 | |
| 9 | 0603-887 | VALVE, SHOCK 1.000 X.015 | 1 | $6.95 | |
| 10 | 0603-888 | VALVE, SHOCK 1.100 X.015 | 1 | $6.89 | |
| 11 | 0603-347 | VALVE,1.250X.010(3/8ID) | 1 | $13.95 | |
| 12 | 0603-336 | VALVE, .900X.006(3/8ID) | 1 | $15.11 | |
| 13 | 0603-344 | VALVE,1.100X.010(3/8ID) | 1 | $12.95 | |
| 14 | 0603-350 | VALVE,1.300X.010(3/8ID) | 1 | $17.95 | |
| 15 | 1604-437 | PISTON, .039 ORIFICE | 1 | $36.95 | |
| 16 | 0603-343 | VALVE,1.100X.008(3/8ID) | 1 | $6.95 | |
| 17 | 0603-341 | VALVE,1.000X.010(3/8ID) | 1 | $6.95 | |
| 18 | 0603-338 | VALVE, .900X.010(3/8ID) | 1 | $14.95 | |
| 19 | 0603-335 | VALVE, .800X.010(3/8ID) | 1 | $12.95 | |
| 20 | 2603-045 | VALVE,SHOCK- .700 DIA X .010 | 1 | $5.95 | |
| 21 | 0603-389 | WASHER,BACKUP | 1 | $12.95 | |
| 22 | 0603-301 | NUT,CAP-FOX SHOCK | 1 | $6.95 | |
| 23 | 2604-816 | PISTON,FLOATING-ASSY | 1 | $116.95 | |
| 24 | 1604-316 | SCREW, RELIEF W/ O-RING | 1 | $4.95 | |
| 25 | 1604-425 | O-RING(FOX ONLY) | 1 | $4.95 | |
| 26 | 2604-864 | BODY,SHOCK - ALUM-7.25" | 1 | $212.95 | |
| 27 | 2604-817 | BODY,CAP-ALUM BODY-ASSY | 1 | $164.95 | |
| 28 | 0703-341 | VALVE,PRESSURE-ASS'Y | 1 | $56.95 | |
| 29 | 1604-318 | O-RING-END CAP FITTING(FOX ONLY) | 1 | $11.95 | |
| 30 | 0624-097 | SCREW, MACH HSBH #8-32X.25 (SS) | 1 | $0.85 | |
| 31 | 2604-897 | DECAL,SHOCK-ZERO PRO 5.1X1.375(2005) | 1 | $23.39 |
