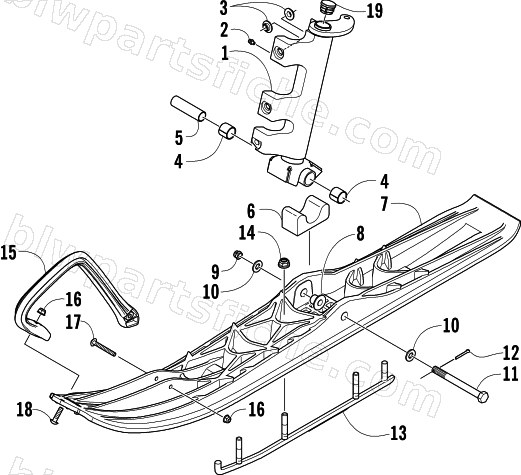

SKI AND SPINDLE ASSEMBLY
2007 PANTHER 370
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2703-006 | SPINDLE, RH-FAB- PLAT | 1 | $293.95 | |
| 1 | 2703-007 | SPINDLE, LH-FAB- PLAT | 1 | $326.95 | |
| 2 | 1623-010 | FIT,GREASE-1/4-28 UNF-SELF THREAD | 1 | $1.92 | |
| 3 | 0603-647 | INSERT,ALUM.-SPINDLE | 1 | $5.78 | |
| 4 | 0603-158 | BEARING,GARLOCK 12DU12 | 1 | $8.21 | |
| 5 | 2603-548 | AXLE,SPINDLE | 1 | $19.25 | |
| 6 | 0603-036 | DAMPER, SKI RUBBER | 1 | $17.87 | |
| 7 | 2603-599 | R/B 3703-940 | 1 | $228.95 | |
| 8 | 2603-397 | INSERT,SKI | 1 | $15.11 | |
| 9 | 0123-296 | NUT,FLEX-FULL 7/16-20 | 1 | $6.47 | |
| 10 | 0623-728 | WSHR, FLAT-HARD(.469 X 1.125 X .100 THK) | 1 | $3.02 | |
| 11 | 0623-776 | SCREW, CAP-HH 7/16-20 X 5.50 W/HOLE | 1 | $14.95 | |
| 12 | 0123-458 | PIN,COTTER 1/8X1 | 1 | $0.40 | |
| 13 | 2603-535 | SKAG, HARDWELD-WOODY'S-BLK | 1 | $58.95 | |
| 14 | 8047-486 | NUT,HEX FLG-NY LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 15 | 2603-598 | HANDLE,PLASTIC SKI-BLK | 1 | $33.95 | |
| 16 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 17 | 1623-688 | SCREW,MACH-TSTRH 1/4-20 X 2.00 GR5 Z&Y | 1 | $4.26 | |
| 18 | 1623-689 | SCREW,MACH-TSTRH 1/4-20 X 1.00 GR5 Z&Y | 1 | $8.21 | |
| 19 | 0623-831 | CAP, SPINDLE (RDR-10-1420) | 1 | $1.50 |
