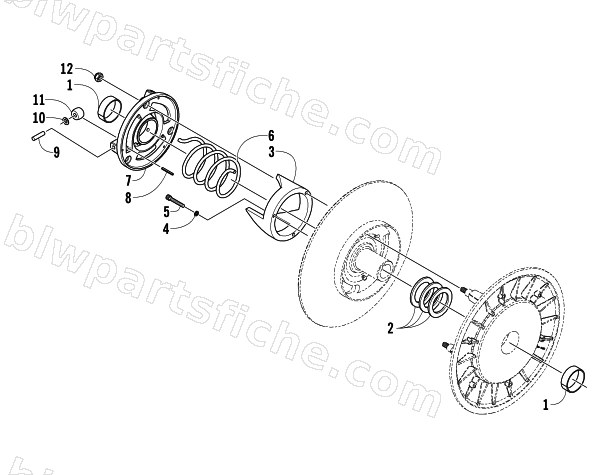

2007 Arctic Cat PANTHER 570 — DRIVEN CLUTCH
2007 PANTHER 570
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0726-243 | CLUTCH,DRIVEN-51/49-YELLOW | 1 | $685.95 | |
| 1 | 0648-009 | BEARING,DRIVEN CLUTCH 24DU08 | 1 | $19.25 | |
| 2 | 0148-198 | WASHER,FLAT-1.51 X 2.10 X .030 | 1 | $1.64 | |
| 2 | 0148-199 | WASHER,FLAT-1.51 X 2.10 X .060 | 1 | $3.16 | |
| 3 | 0648-125 | CAM, DRIVEN CLUTCH - 51-49 | 1 | $86.95 | |
| 4 | 8051-152 | WASHER,SPR LOCK-#10 .193X.334X.047 Z&Y | 1 | $0.15 | |
| 5 | 8005-404 | SCREW, CAP-HSH 10-24X1.25 Z&Y | 1 | $0.95 | |
| 6 | 0148-227 | SPRING, DRIVEN-YELLOW | 1 | $39.95 | |
| 7 | 0748-018 | PLATE,ROLLER-ASSY | 1 | $97.95 | |
| 8 | 8070-224 | PIN,SPRING-1/8 X 1 SLOTTED Z&Y | 1 | $0.40 | |
| 9 | 0648-097 | PIN,CAM ROLLER | 1 | $2.88 | |
| 10 | 0648-082 | WASHER,THRUST-PLASTIC ROLLER | 1 | $1.92 | |
| 11 | 0648-079 | ROLLER,DRIVEN CLUTCH-PLASTIC | 1 | $15.11 | |
| 12 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 |
