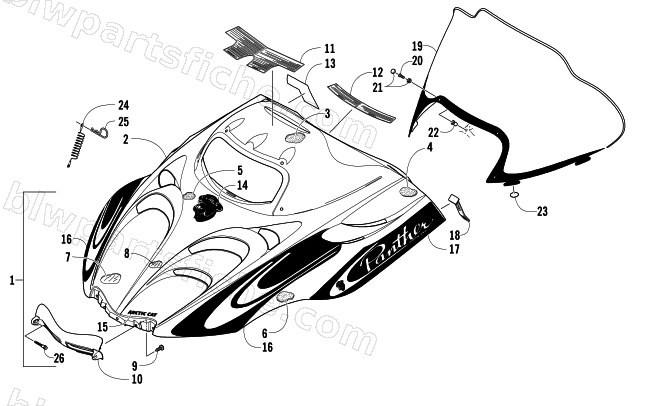

2007 Arctic Cat PANTHER 660 TOURING — HOOD AND WINDSHIELD ASSEMBLY
2007 PANTHER 660 TOURING
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1718-984 | HOOD W/DECALS-07 PA 660 | 1 | $1,358.95 | |
| 2 | 1718-983 | HOOD, W/O DECALS-07 PA 660 | 1 | $1,090.95 | |
| 3 | 0617-508 | FOAM, HOOD- MIDDLE UPR RH | 1 | $26.95 | |
| 4 | 0617-506 | FOAM, HOOD-UPR RH | 1 | $68.95 | |
| 4 | 0617-507 | FOAM, HOOD-UPR LH | 1 | $128.95 | |
| 5 | 0617-475 | FOAM,HOOD-MIDDLE | 1 | $15.11 | |
| 6 | 0617-326 | FOAM,HOOD-REAR RH | 1 | $17.95 | |
| 6 | 0617-327 | FOAM,HOOD-REAR LH | 1 | $29.95 | |
| 7 | 1606-938 | FOIL,HOOD-RH | 1 | $54.95 | |
| 7 | 1606-939 | FOIL, HOOD-LH | 1 | $75.95 | |
| 8 | 2606-935 | FOIL, PROTECTIVE-4 STROKE HOOD | 1 | $17.87 | |
| 9 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 10 | 4606-004 | HINGE, HOOD-PLATINUM | 1 | $49.95 | |
| 11 | 3611-485 | DECAL, WARNING-GENL & BRAKE-ENG & FRNCH | 1 | $35.95 | |
| 12 | 3611-970 | DECAL, CAUTION-ENG/BTRY/FUEL-ENG &FRCH | 1 | $41.95 | |
| 13 | 3611-580 | DECAL,REVERSE | 1 | $25.95 | |
| 14 | 7611-412 | DECAL, HOOD-CREST-PANTHER | 1 | $34.95 | |
| 15 | 7611-413 | DECAL, HOOD-"ARCTIC CAT"-PANTHER | 1 | $141.95 | |
| 16 | 7611-414 | DECAL, HOOD-UPPER-RH-07 PA | 1 | $129.95 | |
| 16 | 7611-415 | DECAL, HOOD-UPPER-LH-07 PA | 1 | $129.95 | |
| 17 | 7611-416 | DECAL, HOOD-LOWER-RH-07 PA | 1 | $145.95 | |
| 17 | 7611-417 | DECAL, HOOD-LOWER-LH-07 PA | 1 | $85.95 | |
| 18 | 1606-067 | STRAP, HOLDDOWN- HOOD | 1 | $12.35 | |
| 20 | 0623-902 | SCREW, MACH-PHTRH-10-32X5/8-ZY | 1 | $0.95 | |
| 21 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 22 | 0623-845 | NUT, EXP,10-32 | 1 | $2.47 | |
| 23 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 | |
| 24 | 3606-746 | CABLE, HOOD-37" | 1 | $14.95 | |
| 26 | 1623-016 | SCREW, HEX DOME HEAD -1/4-20 x1.24 Z&Y | 1 | $27.95 |
